Water Well Drilling in Angelina County, TX

Angelina County Water Well Planning Starts With the Right Records

Angelina County looks simple if you only read the headline well count. The county has 1,985 submitted driller records in the TurnKey Wells database, and private water is common around Lufkin, Diboll, Huntington, Zavalla, Pollok, Redland, and the timber and pasture tracts between them. But the raw record count is not the number a land buyer should use to budget a home well.

The reason is the use mix. In Angelina County, the submitted driller record set includes 749 monitor wells, 200 environmental soil borings, 124 rig-supply wells, 30 injection wells, and other non-household records. Those records matter for environmental and industrial history, but they can distort a homeowner’s depth expectation. For residential planning, the better starting point is the domestic and irrigation record set, then the closest wells to the specific property.

TurnKey Wells uses the county page as a first-pass planning guide, then narrows the analysis with the Free Well Check and the Pre-Drill Intelligence Report. That is the difference between reading a county average and making a property-level decision.

What the Angelina County Well Data Says

For household use, the useful Angelina County signal is the domestic well subset. The database includes 673 domestic wells, and 579 of those have usable pump-depth data. In that domestic set, the median pump depth is 120 feet. The middle half of records clusters between about 95 and 160 feet, while the 90th percentile reaches about 215 feet. That means many domestic projects are not exceptionally deep, but it does not mean every tract should be budgeted around 120 feet.

Some household wells are shallower than 70 feet. Others run past 200 feet. Irrigation records in the county average deeper than domestic records, and rig-supply or public-supply wells can be deeper still. That matters when a seller, buyer, or agent sees one nearby record and assumes it applies to the property next door. The right question is not just “how deep are wells in Angelina County?” The better question is “which nearby wells match this intended use and this geology?”

• Total SDR records: 1,985 submitted driller reports in Angelina County
• Domestic records: 673 total, with 579 usable pump-depth entries
• Domestic median: 120 ft
• Domestic middle band: roughly 95 to 160 ft
• Domestic upper planning marker: about 215 ft at the 90th percentile
• Plugged-well records: 925 county records in the plugging dataset

Aquifers and Geology Around Lufkin, Diboll, and Huntington

The groundwater signal in Angelina County is layered. Groundwater database records point most often to the Yegua-Jackson aquifer system, with Carrizo-Wilcox and Sparta also present in the county mix. The Yegua-Jackson records in the GWDB average much shallower than the Carrizo-Wilcox records, which is why one countywide aquifer label is not enough.

For a rural tract buyer, that creates two practical questions. First, what aquifer or formation is likely under this exact property? Second, what have nearby domestic wells actually produced? East Texas geology is not a flat, uniform target. Sand, clay, shale, and lignite-bearing intervals can change across short distances, and completion quality matters. A driller may need to case through weak material, isolate nuisance water, or adjust the target based on the log as drilling progresses.

That is also why a property-specific review should not blindly mix monitor wells, test wells, injection records, and household wells. Monitor wells may be shallow because they are designed for environmental sampling. Rig-supply and public-supply wells may be deeper because they were built for a different production need. Domestic planning should be anchored to comparable domestic records first.

Why Raw Angelina County Well Averages Can Mislead

Angelina County is not just “East Texas well drilling.” The Lufkin and Diboll corridor has enough commercial, industrial, monitoring, and environmental activity that the dataset needs cleaning before it becomes useful to a landowner. A page that says “average well depth” without explaining the record mix is not doing the buyer any favors.

For land around Zavalla, Huntington, Pollok, and Redland, a buyer should look at nearby domestic wells, recent drilling dates, reported pump depths, plugged-well history, and whether the property sits inside a groundwater conservation district. A seller should also know whether old or unused wells exist before completing water-well disclosure paperwork. These are not academic details. They affect the drilling budget, the closing process, and whether the buyer inherits a water problem.

Budgeting a Full Well Project in Angelina County

Angelina County’s domestic depth profile is friendlier than deeper Texas corridors, but a finished well project still needs to be budgeted as a full system, not just a drilled hole. A practical planning range for a complete residential project is generally $25,000 to $45,000+ once drilling, casing, pump equipment, pressure components, trenching, electrical coordination, water testing, and local requirements are counted together.

The county median helps frame the conversation, but it does not quote the job. A 120-foot nearby domestic well is useful evidence. It is not a guarantee. A site with difficult access, a poor completion interval, a deeper target, treatment needs, or longer trenching can move above the simple range quickly.

• Full residential project planning range: $25,000 to $45,000+ depending on site and completion scope
• Typical drilling-rate assumption: $65 to $120 per foot before full-system variables

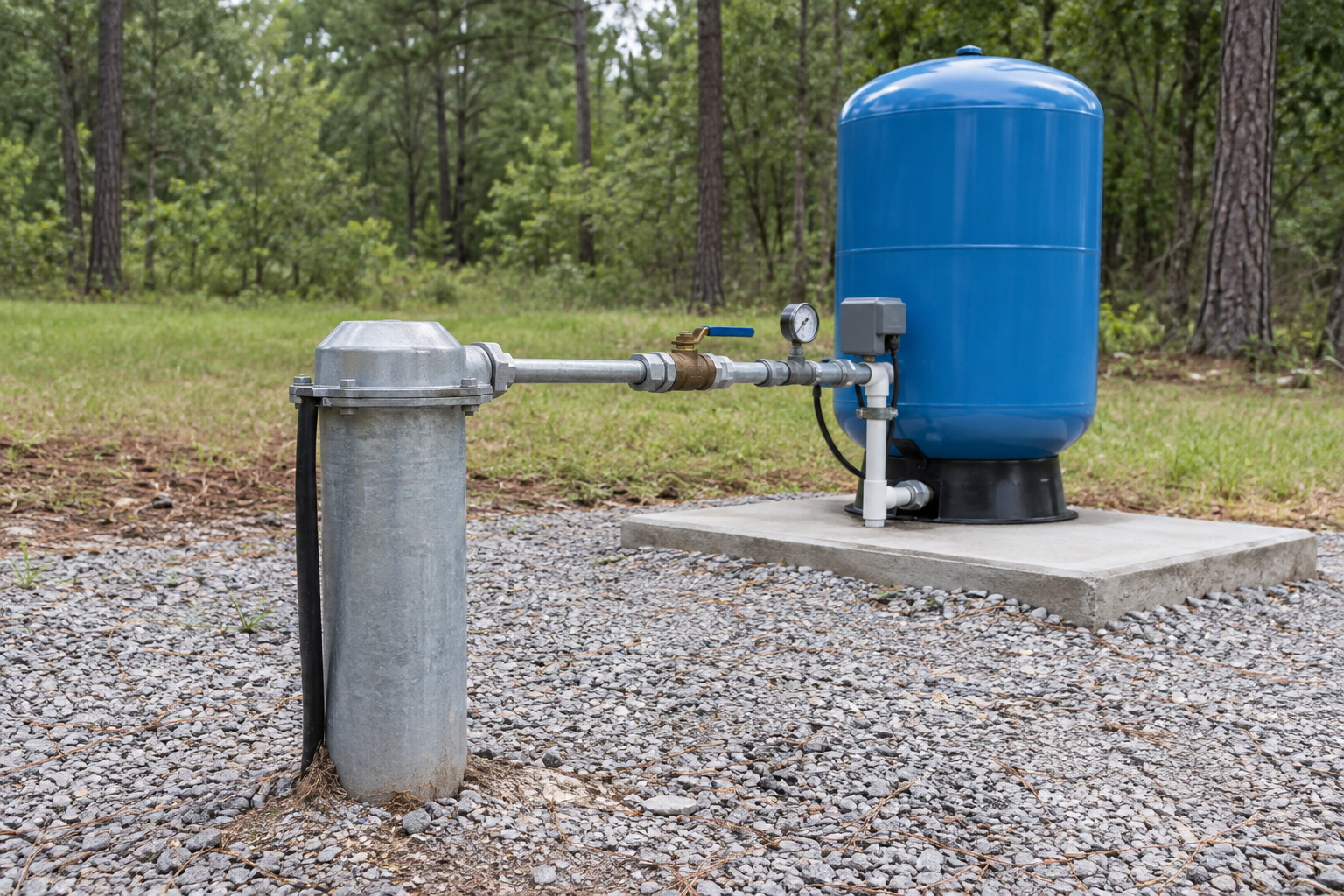

• Pump and pressure system: commonly $3,000 to $8,000 depending on depth and demand
• Permits and paperwork: commonly $500 to $1,500, depending on district and use
• Water treatment: quote separately after testing, not before

Groundwater District and Permit Questions

Angelina County is associated with the Pineywoods Groundwater Conservation District boundary data in the TurnKey Wells GCD files. GCD rules can affect permitting, registration, spacing, and reporting. A licensed driller should handle the drilling compliance steps, but a buyer or seller still needs to know which district applies before assuming a well is simple.

TurnKey Wells does not act as the drilling contractor on the county page. We review records, organize the planning picture, and help connect property owners with vetted licensed drillers for the field work. If a property is changing hands, the same record review can support disclosure work under Texas law. The Texas water well disclosure guide explains what sellers, buyers, and agents need to verify when a private well is part of a transaction.

Water Quality and Completion Concerns

Angelina County wells should be tested after drilling and before relying on the water for household use. East Texas wells can encounter iron, manganese, acidity, tannin staining, fine sediment, and other treatment issues depending on the producing interval and construction quality. The GWDB records in the local database do not show water-quality availability flags for this county, so a current lab test is more useful than assuming old database coverage will answer the question.

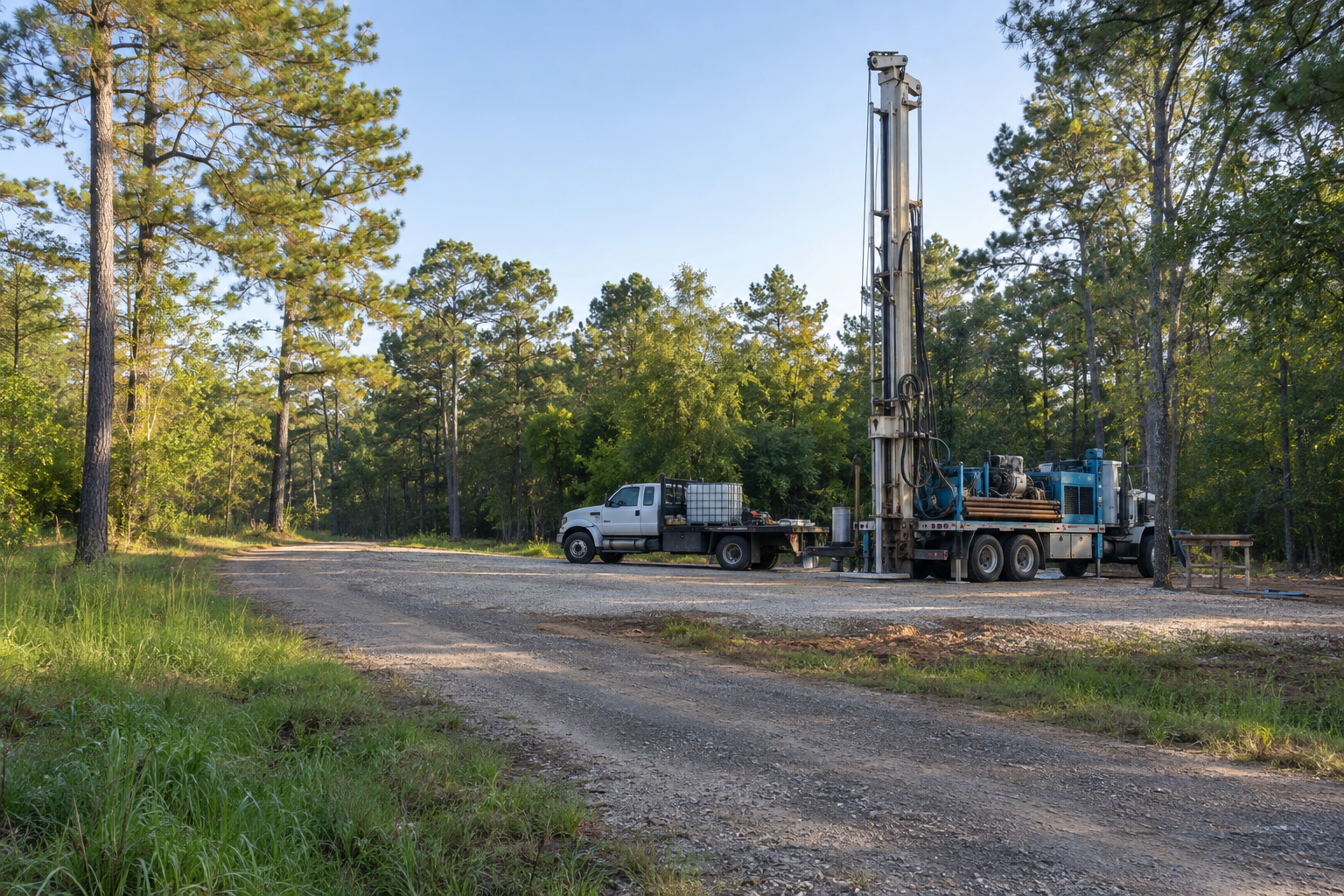

Good site placement matters too. Septic setbacks, drainage patterns, older homesites, abandoned wells, agricultural activity, and access for the rig should all be considered before a drill date is scheduled. A productive well in the wrong location can still create headaches. A properly placed and sealed well protects the water supply and helps avoid expensive rework later.

Buying Land in Angelina County?

If you are buying acreage, the fastest mistake is treating “there are wells nearby” as the same thing as “this property is low-risk.” Before closing, a buyer should check registered wells within a practical radius, screen out non-comparable monitor and industrial records, look for plugged or abandoned well history, confirm the GCD situation, and ask whether any existing well needs inspection or disclosure.

The Free Well Check is the starting point when you need to know whether nearby registered wells exist. The Pre-Drill Intelligence Report is the better next step when you are deciding whether to buy land, where to place a well, or how much drilling risk to budget before making an offer.

Planning to Drill in Angelina County?

If the goal is a new residential well, start by comparing nearby domestic and irrigation records, not every record in the county. Look at depth, age, use type, driller history, aquifer signal, and plugged-well history. Then ask a licensed driller to verify the site and quote the field work with the right assumptions.

TurnKey Wells can help you move from a broad county estimate to a property-specific plan. That gives the driller a cleaner starting point and gives the landowner a better budget conversation before the rig is scheduled.

Angelina County Service Area

TurnKey Wells supports well-record review, pre-drill planning, and driller matching across Angelina County, including Lufkin, Diboll, Huntington, Zavalla, Pollok, Redland, Burke, Hudson, and nearby rural acreage.

Nearby County Well Planning Pages

If you are comparing Angelina County against nearby East Texas markets, these county pages help anchor the regional groundwater picture:

• Water well drilling in Cherokee County
• Water well drilling in Houston County
• Water well drilling in Nacogdoches County

Water Well Cost Planning in Angelina County

County well pages are useful starting points, but the real budget depends on nearby well depth, casing, pump size, utility distance, and local groundwater rules. Use this page with the Texas water well drilling cost guide to compare Angelina County conditions against broader statewide planning ranges.
