Archer County, Texas
Water well drilling in Archer County
TurnKey Wells helps Archer County property owners move from county well records to property-specific questions and a clear drilling estimate. Tell us where the property is and what the well needs to support.
- Address-based project intake
- Property-specific planning
- Clear next steps
Screening land in Archer County? Start with public records, then tie the comparison to the exact property.
What 52 positive-depth household records tell you
Archer County has 52 domestic reports, and every one includes a positive borehole depth. Those logs have a 102.5-foot median, while their middle half runs from 40.75 to 205 feet. The calculated 90th-percentile marker is 300 feet, and the full recorded positive range is 20.5 to 580 feet.
The broad spread is useful planning context, but it is not a property estimate. Nearby comparable records, intended demand, access, casing and sealing choices, pump setting, utilities, treatment or storage needs, source documents, and site conditions still belong in the review.
Data source: Texas Water Development Board Submitted Driller’s Report Database.
Recorded domestic borehole depths
The middle half of 52 positive reported domestic depths
Archer County’s well file serves several purposes
Monitoring filings lead the county’s 243 submitted reports with 94 records, followed by 52 domestic, 33 stock, 25 irrigation, 21 environmental soil-boring, and 13 test-well records. Those uses stay separate so monitoring, agricultural, investigative, and test work does not distort household planning.
Domestic depth logs
All 52 domestic filings include a positive depth. Their 102.5-foot median and 40.75-to-205-foot middle band provide the cleanest household comparison.
Monitoring depth logs
All 94 monitoring filings include a positive depth, with a 20-foot median tied to monitoring rather than household demand.
Stock depth logs
All 33 stock filings include a positive depth, with a 62-foot median and a separate operating-demand profile.
Irrigation depth logs
All 25 irrigation filings include a positive depth, with a 60-foot median and a separate water-demand profile.
Environmental depth logs
All 21 environmental soil-boring filings include a positive depth, with a 17-foot median and an investigative purpose.
The remaining mix includes 13 test-well, three unknown-use, and two closed-loop geothermal records.
Archer County records need to be sorted by purpose
A countywide average that blends household wells with monitoring, stock, irrigation, environmental soil-boring, test-well, unknown, and closed-loop geothermal uses is not a clean comparison. Household planning should begin with the domestic records.
The complete Archer County job is more than drilling footage
Gate width, road conditions, overhead lines, septic placement, distance to power, intended demand, and equipment choices all belong in the plan.

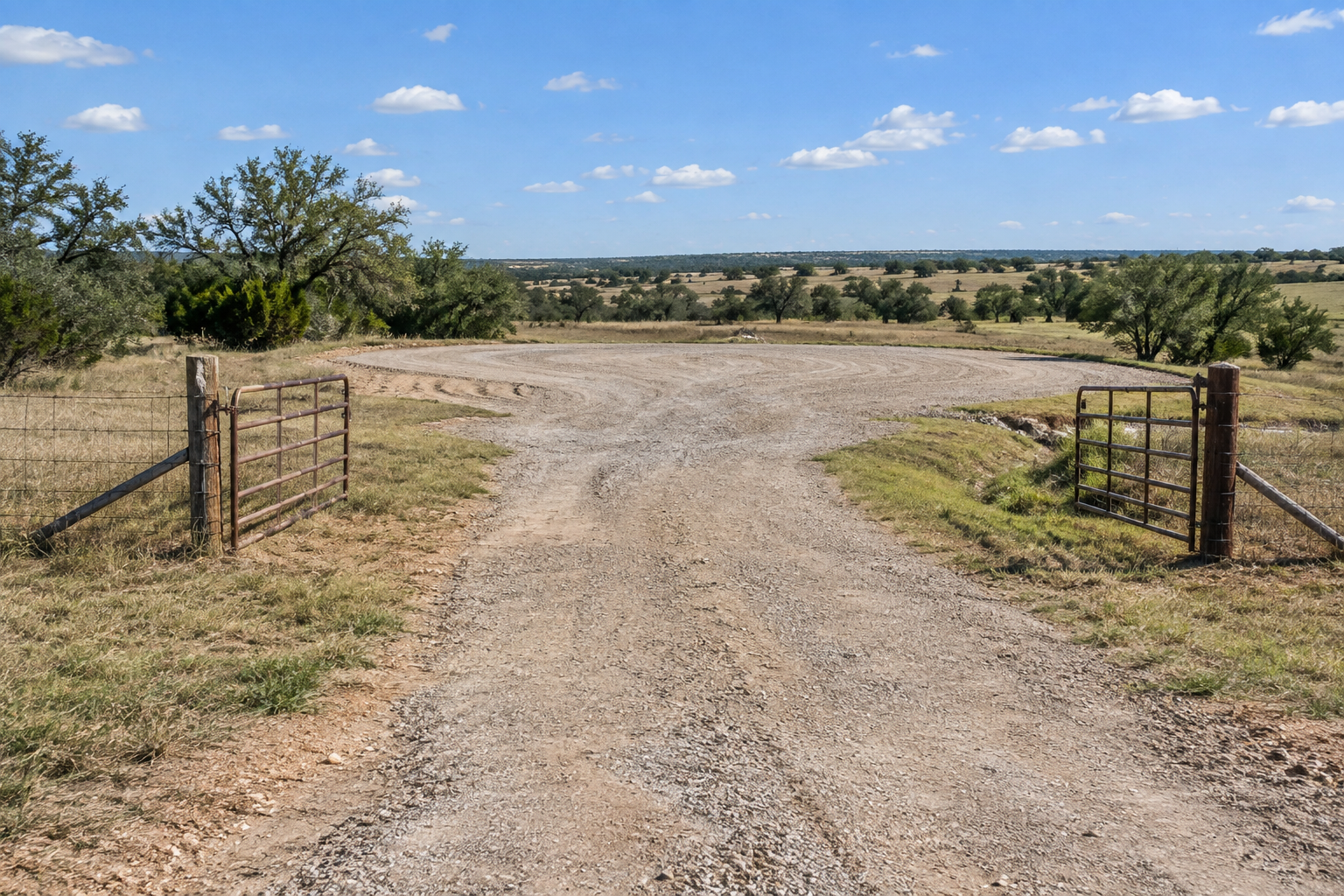

Property access
Roads, gates, low branches, overhead lines, utility conflicts, turning room, drainage, and a safe stabilized work pad.
Water demand
Household use, livestock, irrigation, storage, treatment, and peak daily needs.

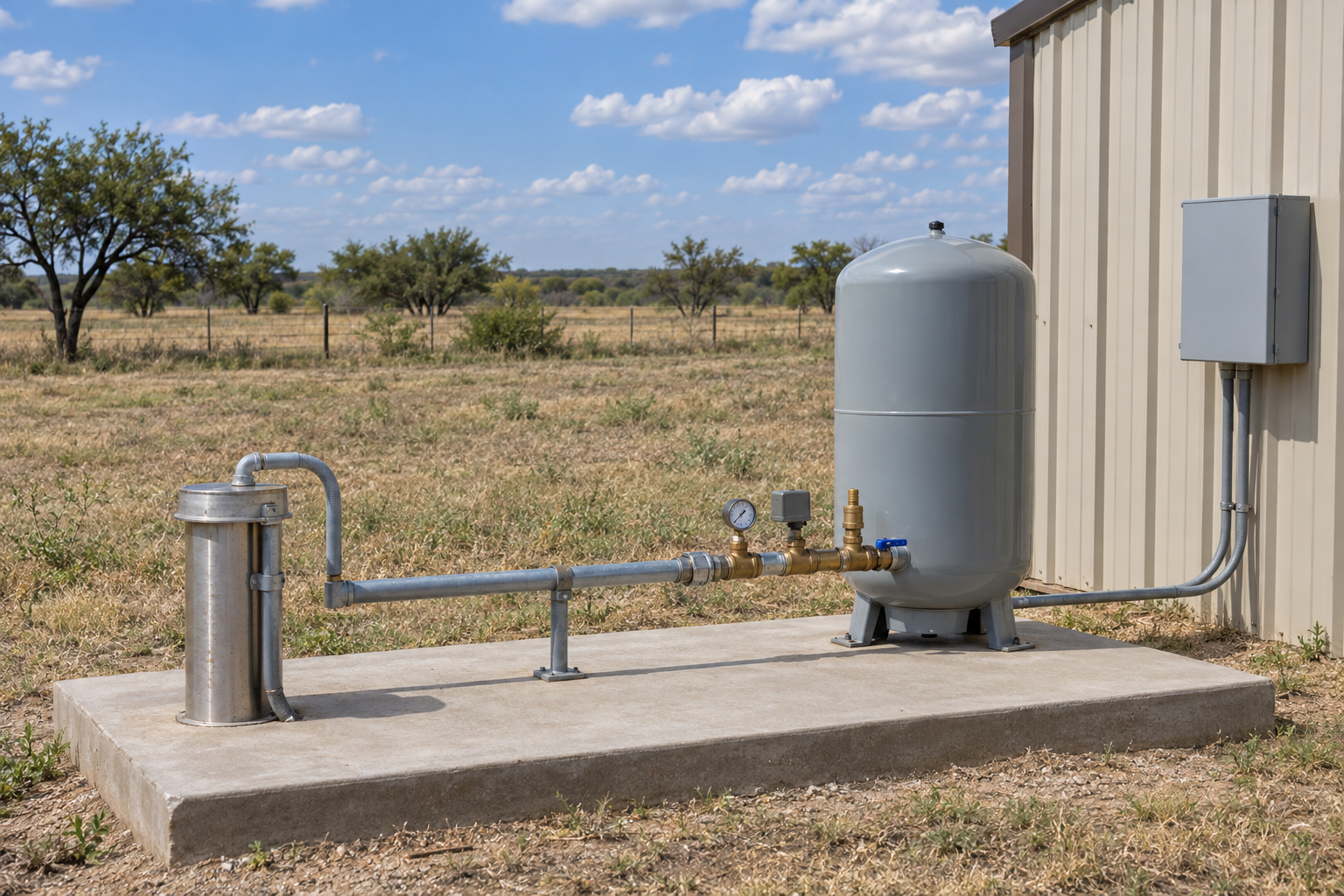

Pump and power
Pump selection, anticipated drawdown, electrical service, controls, pressure equipment, line runs, and trenching.
Complete installation
Casing, completion materials, testing, storage, plumbing, treatment, cleanup, and startup.
Build the estimate around what the Archer County property actually needs.
Share the address, intended use, access, timing, and any existing well information. TurnKey Wells reviews the project context and connects the owner with a qualified water-well professional for the next step.
Separate drilling footage from the finished system
A complete Archer County budget may include mobilization, drilling, casing, completion materials, pump and controls, pressure equipment, trenching, electrical work, storage, testing, treatment, drainage, and cleanup. The Texas water well drilling cost guide explains the major categories behind a headline estimate.
The Pre-Drill Report can bring nearby well records and property details into one review, but no county pattern predicts the producing interval, total depth, water level, yield, salinity, or water quality at one property. Use property-specific research before treating a county pattern as a drilling plan.
- Mobilization and setup
- Drilling and casing
- Pump and controls
- Pressure equipment
- Power and trenching
- Storage and treatment
- Water testing
- Site cleanup
Pre-Drill Intelligence Report
The county information on this page shows broad patterns. The paid report narrows the research to one Archer County property before you compare drilling quotes or choose the next step for your land.
- Nearby recorded wells and reported depths
- Property access and site-planning questions
- Questions to ask before drilling begins
- A clearer picture of the complete water system
Understand the ground before you drill. Property conditions can change across the county. A property-specific review brings nearby well records, location, intended use, access, and complete-system questions together before you request a drilling quote.
From property address to drilling conversation
Tell us about the property
Share the address, how the water will be used, and when you hope to begin.
We review the project
We look at the location and follow up for any details needed to discuss the estimate.
Plan the drilling work
You receive a clear next step for the drilling quote and complete water system.
Plain answers before you plan the work
What do Archer County household well records show?
The county file includes 52 positive domestic borehole-depth logs with a 102.5-foot median, a 40.75-to-205-foot middle band, a 300-foot calculated 90th percentile, and a 20.5-to-580-foot full range.
Why should Archer County records be separated by use?
Monitoring records lead the file, followed by domestic, stock, irrigation, environmental soil-boring, test-well, unknown-use, and closed-loop geothermal filings. Keeping each purpose separate avoids turning non-household work into a household expectation.
Does a countywide depth pattern predict one property?
No. County records do not prove the producing interval, total depth, water level, yield, salinity, or water quality at one property.
Which groundwater rules apply in Archer County?
Registration, permitting, spacing, construction, and reporting requirements can depend on the property, district boundary, well type, and intended use. Confirm current requirements before work begins.
What should a complete drilling quote include?
Compare mobilization, drilling, casing, completion materials, pump and controls, pressure equipment, electrical and trenching work, testing, treatment or storage where needed, elevation and drainage details, startup, and cleanup.
Water well planning across Archer County
Property owners ask about well planning around Archer City, Holliday, Scotland, Windthorst, county roads, ranches, homesites, and rural acreage between them. Start with the exact address or coordinates, intended water use, access, utilities, wastewater components, and nearby domestic records; a community label does not prove shared geology, water quality, yield, or private-well feasibility.
Tell us about your Archer County property.
Send the basics and we will follow up to learn what you need, answer initial questions, and discuss the next step toward a water well drilling quote.
- No long questionnaire
- A real follow-up about your property
- Clear options for drilling and pre-drill planning
Request a Water Well Drilling Quote
Tell us where the property is and what the well needs to support.
Your information is used to respond to this request. Privacy Policy
