Water Well Drilling in Grimes County, TX

Grimes County Well Planning Starts With the Domestic Finished-Depth Signal

Grimes County sits in the part of Texas where buyers see pasture, scattered homesites, and plenty of acreage between Navasota, Anderson, Bedias, Iola, Plantersville, Richards, and the roads feeding north toward Madison County or east toward the piney edge. That visual can make the county feel simple. The record set says otherwise.

The TurnKey Wells database includes 3,213 submitted driller records for Grimes County. That sounds like a clean county sample until you remember the file also carries 306 monitor wells, 74 environmental soil borings, and deeper-use records for stock, rig-supply, irrigation, industrial, and public-supply projects. A land buyer who budgets from the first countywide average he hears is mixing very different groundwater jobs into one number.

The better approach is to start with domestic finished-depth evidence, then check how the tract sits relative to the Gulf Coast, Yegua-Jackson, and Brazos-bottom groundwater picture. If you need the fast first pass, start with the Texas water well records lookup. If the purchase, drill budget, or homesite decision is real, the Pre-Drill Intelligence Report is the stronger next step.

What the Grimes County Domestic Well Data Actually Says

The Grimes County file includes 2,421 domestic records. Of those, 2,421 have usable total-depth data and 2,150 report usable pump-depth data. That domestic slice is the right backbone for rural residential planning.

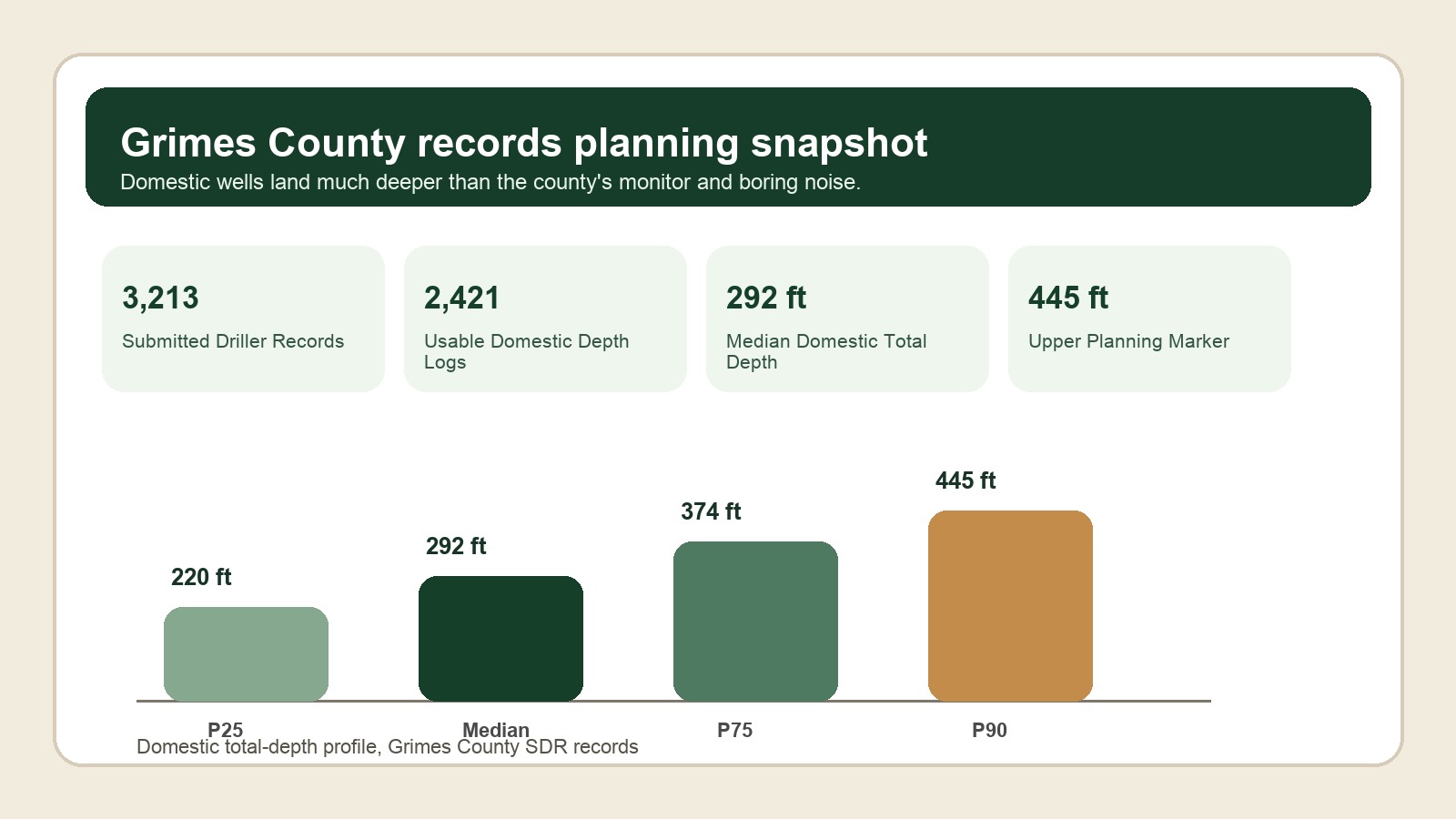

In the domestic set, the median total depth is 292 feet. The practical middle band runs about 220 to 374 feet, and the upper planning marker reaches about 445 feet. Pump settings are shallower, with a 200-foot median pump depth and a middle band around 155 to 240 feet. In the 2,150 domestic logs that report both values, the average spread between finished depth and pump setting is about 100.2 feet. That is exactly why a shallow pump number is not a finished-project budget.

• Total SDR records: 3,213 submitted driller reports in Grimes County
• Domestic records: 2,421 total
• Usable domestic total-depth logs: 2,421
• Median domestic total depth: 292 ft
• Domestic middle band: about 220 to 374 ft
• Upper planning marker: about 445 ft
• Usable domestic pump-depth logs: 2,150
• Plugged-well records: 396 county records in the plugging dataset

Why the Raw County Average Can Mislead a Land Buyer

Grimes County has enough non-household activity to fool anyone who treats the file like a one-number county. The shallow noise starts with monitor wells averaging about 41.5 feet and environmental borings averaging only about 19.8 feet. Those records tell you something about site investigations and environmental work. They do not tell you what it will take to build a long-term household well on acreage outside Navasota or Anderson.

On the other side of the record set, the county also carries 18 public-supply wells averaging roughly 560 feet, plus 82 rig-supply wells, 91 industrial wells, and 67 irrigation wells that average well above a normal residential comparison. Even stock-well records run deeper than many buyers expect. The problem is not a lack of data. The problem is using the wrong records for the job you are pricing.

That matters in Grimes County because the county blends horse property, ranchland, Brazos-bottom ground, oilfield-service history, and commuter acreage that feeds the Bryan College Station and north-Houston orbit. A buyer looking at a tract near Plantersville should not assume it behaves the same as a tract near Bedias, even if both sit inside the same county line.

What the Aquifer Mix Means in Plain English

The groundwater database leans toward the Gulf Coast aquifer system in Grimes County, with 196 of 366 GWDB wells carrying that label. Another 115 are tagged Yegua-Jackson, and 12 sit in the Brazos River Alluvium slice. In practical terms, this is a county where the groundwater story shifts with location and depth instead of giving you one clean countywide target.

The Gulf Coast domestic GWDB wells in Grimes County average around 235 feet, while Yegua-Jackson domestic wells average closer to 334 feet. That is a meaningful spread. It fits what buyers see on the ground: lower-lying alluvial or floodplain influence near the Brazos corridor can behave differently from the deeper layered sands and clays seen away from the river. The county does not need a dramatic geology story to create a real price swing. It just needs the wrong comparable.

The broader GWDB use split makes the same point. Domestic GWDB wells show a 240-foot median depth, while public-supply wells show a 460-foot median depth. That does not mean a household well belongs at public-supply depth. It means Grimes County supports multiple groundwater use cases at once, and domestic planning should stay anchored to domestic evidence first.

Bluebonnet GCD, Permit Questions, and Texas Disclosure

Grimes County sits inside the Bluebonnet Groundwater Conservation District footprint. The district describes itself as serving Austin, Grimes, Walker, and Waller Counties, and parcel-level oversight should always be verified before a driller or buyer assumes a simple exemption path. In real estate terms, that means permit assumptions belong after parcel review, not before it.

The public starting point is the water well permit Texas and groundwater district rules guide, especially if a sale, inherited well, or older undocumented system is part of the file. TurnKey Wells is not the drilling contractor on this page. We review the record set, separate the useful comparables from the noise, and help connect property owners with vetted licensed drillers who can confirm field requirements on the exact tract.

That matters in Grimes County because the same deal often includes two questions at once: what a new well is likely to cost, and whether an older well on the property should be treated as an asset, a disclosure item, or a future liability. The answer is usually in the records before it is in the sales pitch.

Budgeting a Residential Well Project in Grimes County

Grimes County is not a bargain-basement shallow-well county. With a 292-foot domestic median and a 90th-percentile marker near 445 feet, a realistic well drilling cost Texas planning range for a finished residential project is generally $25,000 to $45,000+ once drilling, casing, pump equipment, pressure components, trenching, electrical coordination, water testing, and local compliance work are all counted together.

The county still has room to move above that range quickly. Longer trenching, tougher access, heavier casing, storage needs, treatment needs, and a deeper target interval can push the total well above the simple domestic median case. Buyers should treat the county statistics as a planning filter, not a binding quote.

• Full residential project planning range: $25,000 to $45,000+ depending on site and completion scope
• Typical drilling-rate assumption: $65 to $120 per foot before full-system variables
• Pump and pressure system: commonly $3,000 to $8,000 depending on depth and demand
• Permits and paperwork: commonly $500 to $1,500 depending on jurisdiction and use
• Water treatment: quote separately after testing, not before

Water Quality and Completion Concerns

Water-quality assumptions are cheap until they are wrong. The Grimes County GWDB slice currently shows 0 wells flagged with water-quality availability, which means the live planning move is a current lab test, not hope. In this county, buyers and owners should be ready to check for iron, manganese, sediment, tannin staining, and the kind of chemistry shift that can happen when a driller has to chase a deeper or different interval than expected.

Completion quality matters too. A layered Gulf Coast and Yegua-Jackson county needs the right screen, casing, sealing, and site placement. An older well near a prior homesite, livestock setup, or drainage path may create as much risk as the depth itself. That is one reason the find water well records on a property path matters before closing, not after the buyer learns the hard way.

What Grimes County Buyers Should Check Before Closing

If you are buying land in Grimes County, start by checking nearby domestic finished depths, then compare those logs against the exact tract location, use type, and any evidence of older or plugged wells. A property outside Navasota with easy road access and clear nearby domestic comparables is a different risk profile than an older rural tract near the Brazos bottom with mixed-use records all around it.

The order matters. Records first. District and disclosure review second. Driller quote third. That sequence gives the driller a cleaner starting point and keeps the buyer from pricing a six-figure headache as if it were a routine rural homesite well. When the purchase is real, the Pre-Drill Intelligence Report turns that countywide picture into property-level planning.

Grimes County Service Areas

TurnKey Wells supports well-record review, pre-drill planning, and driller matching across Grimes County, including Navasota, Anderson, Bedias, Iola, Plantersville, Richards, Roans Prairie, Todd Mission, and nearby rural tracts where private-well costs still shape the deal.
