Water Well Drilling Planning in Armstrong County, TX
475
Submitted Driller Records
186
Usable Domestic Depth Logs
270 ft
Median Domestic Total Depth
Ogallala
Main Aquifer Signal
TurnKey Wells is not the drilling contractor. This page is a county-level records and planning brief built from Texas Water Development Board well datasets. Use it to clean the public file, understand the local well mix, and prepare tract-specific questions for a licensed driller and the applicable groundwater authority.
Armstrong County Household Well Planning Needs a Clean Panhandle Baseline
Armstrong County does not carry Gulf Coast-style noise or a giant suburban sprawl file. It carries a different problem: a relatively small but mixed High Plains record set where domestic, stock, irrigation, and test-well work can pull a buyer’s expectations in different directions if the county numbers are taken at face value. TurnKey Wells analyzed Texas Water Development Board Submitted Driller Report and Groundwater Database records assigned to Armstrong County. As of July 22, 2026, that local working set contains 475 submitted driller records, including 186 domestic records with usable total-depth values. These are county-level public records, not a prediction for any individual tract.
That household signal is important because Armstrong County buyers are usually not planning a giant municipal or oilfield project. They are trying to understand whether a ranch tract can support a private residence, guest house, livestock water setup, or long-term hold with a dependable well strategy. The right first move is a Texas water well records lookup, then a tract-level review that keeps household comparables separate from stock, test, and irrigation work before a driller is asked to quote the job.
TurnKey Wells does not drill the well. We clean the county and parcel record file, explain what the local data actually means, and help buyers start the licensed-driller conversation with something better than guesswork.
How These Armstrong County Figures Were Calculated
The figures below are tied to a read-only TurnKey Wells database backup created April 23, 2026, not to a mutable live layer. The backup preserves the Armstrong County rows used for this page, and each downloadable export has its SHA-256 prefix in its filename. Page statistics were calculated July 22, 2026. A fresh TWDB count can differ as records are added or corrected.
- Submitted Driller Report count: download the 475-row Armstrong SDR snapshot (SHA-256
ac1ba799b325b61f5ebf12febd74898b7bf9483a312ebc2856aa6e66ef2fb305). Fields exported aretracking_number,county,proposed_use,total_depth,pump_depth, drill dates, submission date, and city. Filter isUPPER(TRIM(county)) = 'ARMSTRONG'; rows are deduplicated by the source tracking number, which is the database primary key. The export contains 475 rows and 475 distinct tracking numbers, including 186 rows whereproposed_use = 'Domestic'. - Domestic depth calculations: from that SDR snapshot, filter to exact
proposed_use = 'Domestic'and positivetotal_depth. Sort the 186 values. The median is the 50th percentile, the middle band is the 25th through 75th percentile, and the upper marker is the 90th percentile. - Pump-setting detail: download all 37 qualifying domestic pump-setting rows (SHA-256
364c4341a11ecdb3234cea0d36827cf8009189555ac481669543fe5df0e40efc). Filter is the same Armstrong county rule plus exactproposed_use = 'Domestic'andpump_depth > 0. The file includes tracking number, total depth, pump depth, and the row-leveltotal_depth - pump_depthcalculation. Tracking-number uniqueness is enforced by the source table primary key. - GWDB count and aquifer split: download the 505-row Armstrong GWDB snapshot (SHA-256
3d5c9875a64bac00361f2b042e49d624acba0a72867832192523f7c706411895). Filter isUPPER(TRIM(county)) = 'ARMSTRONG'. The export preserves source tracking number, GWDB ID, coordinates, aquifer code/name, well depth, drilling year, pump, power type, and well use. Aquifer totals group the exactaquifer_namevalues. - Plugging-report count: download the 114-row Armstrong plugging-report snapshot (SHA-256
4db01fde37a947ae52fbe80c667902ee48359720d8301237fac0d8e240221a7d). Fields are tracking number, county, plug date, reason, latitude, and longitude. Filter isUPPER(TRIM(county)) = 'ARMSTRONG'; deduplication is by plugging-report tracking number, the source table primary key. The export contains 114 rows and 114 distinct tracking numbers.
Primary state sources: TWDB Submitted Driller Reports service, TWDB Groundwater Database service, and the TWDB Ogallala Aquifer overview and map viewer.
What the Armstrong County Domestic Well Data Actually Says
Armstrong County shows 186 usable domestic total-depth logs. Inside that household subset, the median domestic total depth is 270 feet. The practical middle band runs about 230 to 305 feet, and the upper planning marker reaches about 330 feet. That is a much tighter planning range than many buyers expect when they hear “Texas Panhandle.”
The pump side also has enough data to be useful. Armstrong County shows 37 domestic pump-depth logs, with a 260-foot median pump setting and a practical middle band around 215 to 280 feet. Across the 37 domestic records that report both finished depth and pump setting, the average gap is about 26.0 feet. That is a grounded household planning signal, not a headline from a random deep test well.
- Total SDR records: 475 submitted driller reports in Armstrong County
- Domestic records: 186 total
- Usable domestic total-depth logs: 186
- Median domestic total depth: 270 ft
- Domestic middle band: about 230 to 305 ft
- Upper planning marker: about 330 ft
- Usable domestic pump-depth logs: 37
- Plugged-well records: 114 county records in the plugging dataset
Why Stock, Irrigation, and Test Wells Can Still Distort the County Story
Armstrong County is ranch country, so the noisy uses are different from what shows up in the Permian Basin or Gulf Coast. The county includes 130 stock wells averaging about 247.0 feet, 89 test wells averaging about 344.8 feet, and 38 irrigation wells averaging about 308.5 feet. Those records still count. They just answer different questions than a domestic well for a ranch home or weekend place.
The shallow side exists too. Armstrong County carries 21 environmental soil borings averaging only 17.8 feet. There are also small counts of 3 public-supply wells, 5 industrial wells, and 3 monitor wells. None of that means the county file is bad. It means the file has to be cleaned before anyone treats one record as a residential budget anchor.
That is the practical Armstrong County lesson. The household well story is real and usable, but it sits inside a larger ranch and agricultural context. Buyers should start with the domestic record set, then compare the nearest plausible household wells, and only then let the driller quote the tract.
Ogallala First, Dockum Second, and Panhandle Geology That Changes the Planning Read
The groundwater database is clear about the county’s main geologic signal. Armstrong County shows 505 GWDB county wells, with 437 tagged to the Ogallala, 39 tagged to Dockum, and another 20 carrying mixed Ogallala/Dockum labeling. That fits the real Panhandle story: shallow High Plains water in one part of the file, deeper red-bed context in another, and tract-level geology that still changes the planning read once you leave the abstract county map.
The GWDB use splits keep the story honest. Armstrong County GWDB domestic wells show a median around 270 feet. Public-supply wells show a median around 254 feet, stock wells around 234 feet, and irrigation wells around 189 feet. That is exactly why a buyer should not grab the deepest or shallowest Panhandle record they can find and call it a quote.
Armstrong County also has terrain that changes faster than a flat county average implies. Claude sits near the canyon country break, while other tracts stretch into broad shortgrass prairie and ranch ground. The local geology can move from Ogallala-dominant household patterns to deeper Dockum influence, and that shift is part of why the Pre-Drill Intelligence Report exists. County numbers help. Parcel-specific geology closes the gap.
Groundwater District and Permit Questions in Armstrong County
Do not assume every Armstrong County parcel is inside the same groundwater district. Official district mapping shows High Plains Underground Water Conservation District No. 1 coverage within Armstrong County, but not blanket countywide coverage. A parcel’s exact location must be checked against the current district boundary before relying on district registration, spacing, or permit rules.
Use the High Plains Water District maps and the Texas Water Development Board groundwater-conservation-district resources for primary-source boundary review. If a property is selling with an existing well, pair that parcel-level district check with the Texas water disclosure planning guide. The TurnKey Wells county dataset also contains 114 plugging records assigned to Armstrong County, but that county count does not establish a plugged well on a particular tract.
TurnKey Wells is a records, planning, and licensed-driller referral service. We do not drill wells, issue permits, or replace confirmation from the applicable district or county authority.
What Changes a Residential Well Quote in Armstrong County
TurnKey Wells does not publish a fixed Armstrong County price range because a county median is not a contractor quote and public records do not capture every completion cost. A licensed driller needs the tract location, target interval, access conditions, intended use, casing and completion plan, pump demand, electrical and trenching requirements, storage needs, testing scope, and any applicable district requirements before pricing the work.
The county’s domestic median near 270 feet is a historical planning reference, not a promised depth or budget. Canyon-edge access, long service runs, deeper target intervals, replacement work, or water-treatment needs can materially change a proposal. Use the Texas water well cost guide to understand the cost categories, then request tract-specific quotes from licensed drillers.

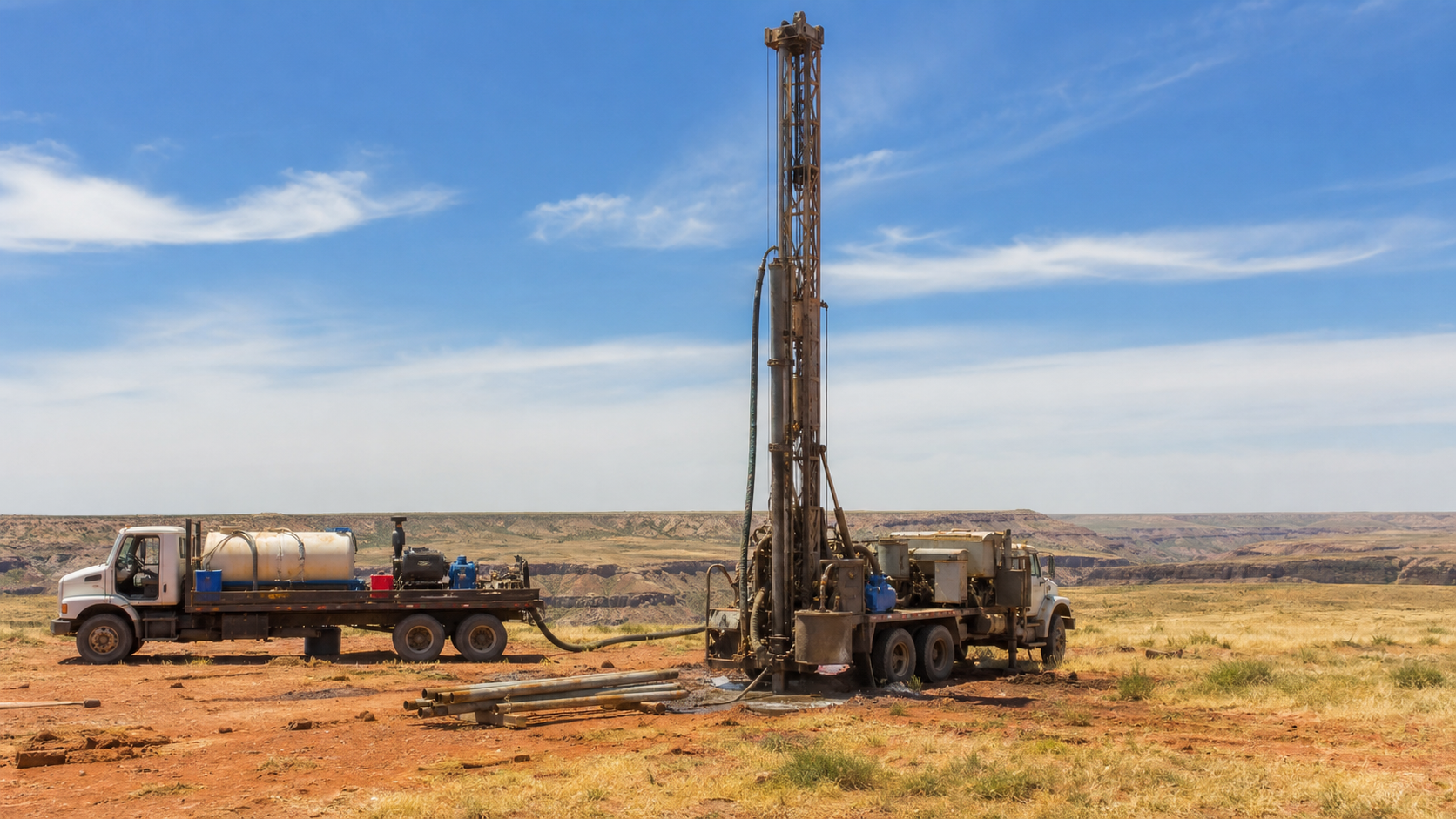

- Location and access: rig access, slope, surface conditions, and distance to power or structures
- Well design: target depth, casing, screen, grout, and completion method

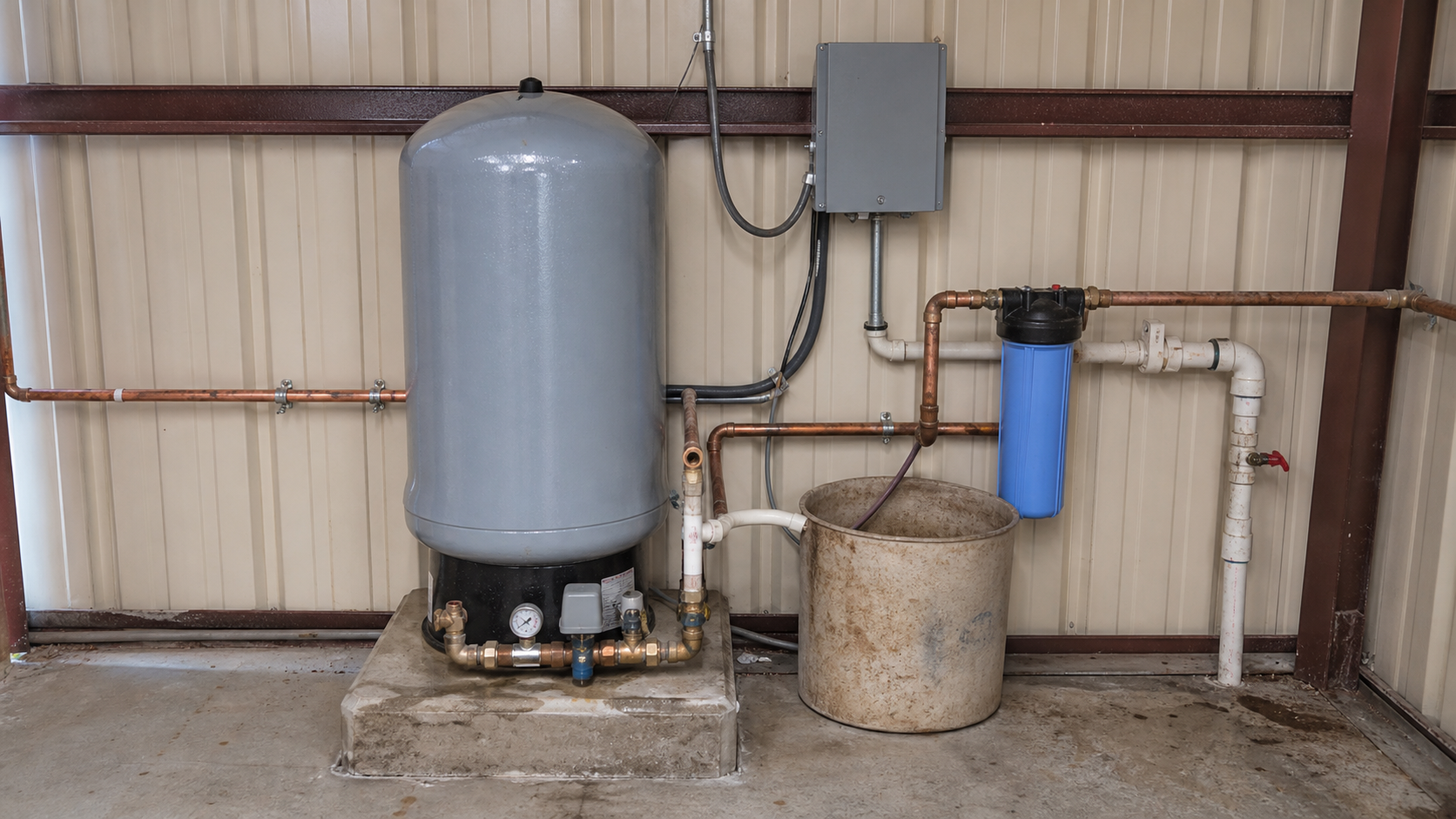

- Water system: pump size, pressure equipment, storage, trenching, and electrical work
- Rules and testing: parcel-specific district requirements and water-quality testing
- Final price: supplied by a licensed driller after reviewing the actual tract and scope
Water Quality and Existing-Well Questions on Panhandle Ranch Tracts
The Armstrong County groundwater file does include some historical water-quality-linked records, but that does not turn county-level database entries into a current chemistry answer for the target tract. Buyers should still expect fresh testing for mineral load, hardness, dissolved solids, sediment, nitrate, bacteria, and any tract-specific concerns tied to older completions or storage practices.
That is important in a county where water use is tied to ranch life and distance. A house well near Claude is not just a depth question. It is also a question of site placement, livestock separation, access for the rig, older well history, and whether the tract should be treated like a simple domestic setup or a more layered ranch-water system. The right place to start is to find water well records on a property, separate the household comparables, and move to a tract-level plan if the purchase is real.
Who This Page Helps in Armstrong County
This page is meant for buyers, sellers, ranch owners, and rural agents who need a grounded Armstrong County planning baseline before they buy land, answer disclosure questions, or price a new private well. TurnKey Wells supports that work across Armstrong County, including Claude, Washburn, Wayside, Goodnight, and the surrounding ranch acreage that runs along US 287, SH 207, and the canyon-country edges toward Palo Duro.
If the decision is still broad, start with the county numbers and the free records check. If the decision is tied to a real tract, move to the Pre-Drill Intelligence Report. That is where a Panhandle county file becomes a usable drilling and due-diligence plan.
Regional Groundwater Pages Worth Reading Next
Live county-page coverage around Armstrong County is still thinner than the groundwater coverage, so the strongest relevant internal references for this Panhandle lane right now are the formation pages that explain the local water story behind the county data:
Armstrong County well planning
Check the records before you price the well.
TurnKey Wells can separate Armstrong County household well evidence from stock, irrigation, and test-well noise so your drilling plan starts with the right Panhandle comparables.
