Water Well Drilling in Liberty County, TX

Liberty County Water Well Planning Starts With the Right Records

Liberty County is one of those Texas counties where the headline number can fool people. The TurnKey Wells dataset shows 3,220 submitted driller records in the county, and private wells are common from Dayton and Cleveland up through Liberty, Hardin, Devers, Daisetta, Raywood, and the Tarkington Prairie corridor. That sounds straightforward until you separate household wells from everything else in the record mix.

The county has a strong domestic record base, but it also has 413 monitor wells, 297 rig-supply wells, 160 environmental soil borings, 86 public-supply records, and smaller industrial and test-well counts mixed into the same county total. Those records matter when you are studying site history or groundwater development, but they can distort a buyer’s well budget if you treat all 3,220 entries as interchangeable.

That is why Liberty County is a good example of what TurnKey Wells actually does. We do not drill the well. We review the records, separate the domestic planning signal from the noisy records, and help landowners, buyers, agents, and sellers understand what the county data means before they rely on a cheap average. The Free Well Check is the fast first pass. The Pre-Drill Intelligence Report is where the property-level planning gets much sharper.

What the Liberty County Well Data Actually Says

For residential planning, the useful Liberty County signal is the domestic subset. Out of the full county dataset, 2,065 records are labeled domestic, and 1,789 of those include usable pump-depth data. In that domestic set, the median pump depth is 100 feet. The middle half of domestic pump settings falls roughly between 75 and 140 feet, and the 90th percentile planning marker is about 160 feet.

That is not the whole story, though. Domestic total drilled depth runs deeper than the pump setting. The domestic total-depth median is 254 feet, with the middle band roughly 185 to 320 feet. In plain English, many Liberty County homes are pumping from about 100 feet, but the well itself is commonly drilled much deeper to complete the right producing interval and leave room for a proper construction design. If someone quotes the county as “100-foot wells,” they are leaving out half the job.

• Total SDR records: 3,220 submitted driller reports in Liberty County
• Domestic records: 2,065 total, with 1,789 usable domestic pump-depth logs
• Median domestic pump depth: 100 ft
• Domestic pump-depth middle band: roughly 75 to 140 ft
• Upper domestic pump-depth planning marker: about 160 ft at the 90th percentile
• Median domestic total depth: 254 ft, with a common total-depth band around 185 to 320 ft
• Plugged-well records: 1,190 county records in the plugging dataset

Why Liberty County’s Gulf Coast Geology Matters

The groundwater database for Liberty County is dominated by the Gulf Coast aquifer system. That fits the county’s location on the upper Gulf Coast plain, where Chicot, Evangeline, and Jasper-age intervals can all matter depending on where the tract sits and how the well is completed. The county-level GWDB count is led by Gulf Coast-tagged wells, while a small number of “unassigned” deep legacy records push the raw aquifer-depth average into nonsense territory. That is another reason not to trust a countywide average without reading the underlying record mix.

For a land buyer, Liberty County is usually less about one hard-rock target and more about completion judgment inside layered Gulf Coast sands, clays, and confining units. The producing interval can be different from one side of the county to the other. A tract near Dayton or the western growth corridor may not line up exactly with a tract closer to Liberty, Hardin, or the lower Trinity floodplain. The practical question is not just what aquifer name appears in the county. The practical question is which nearby domestic wells match this parcel, this intended use, and this part of the county.

That matters because monitor wells, environmental borings, and rig-supply wells do not answer the same planning question as a household well. A 40-foot monitor well or a deeper test well can be real data, but it may have little to do with what a residential driller is targeting for a private home. For Liberty County, the cleaner planning move is to anchor on nearby domestic records first, then add broader county and aquifer context around them.

What the County’s Plugged-Well History Tells You

Liberty County also shows 1,190 plugged-well records in the plugged-well dataset. That does not mean the county is a bad place to drill. It means the county has a long enough well history that old wells, replacement wells, and abandoned completions are part of the property picture. For a buyer, that is due-diligence gold if you use it correctly.

Before you buy acreage, you want to know whether an older homesite had a well that was later plugged, whether an existing well appears in state records, and whether anything on the tract might trigger extra disclosure questions at closing. A plugged-well record can also help explain why a nearby domestic record looks shallow, deep, or inconsistent with a newer well. In counties with a lot of legacy development, that historical layer matters almost as much as the current domestic median.

If the property already has a private well, a buyer or seller should also review the Texas water well disclosure guide before closing. Liberty County is not the place to assume the paperwork will sort itself out later.

Permitting and Groundwater District Reality in Liberty County

Liberty County deserves a more careful permit conversation than a lot of county pages get. In the Texas Water Development Board’s 2021 GMA 14 modeled-available-groundwater summary, Liberty County appears under No District – County rather than inside an active groundwater conservation district allocation table. That is important planning context, because many Texas buyers assume every county falls under a local GCD permit structure.

That does not mean you should skip compliance. A licensed Texas driller still has to handle the drilling record, construction standards, and required filings. Site-specific county or local utility requirements can still matter. If a tract sits near a jurisdictional edge or has a non-standard use case, verify the exact regulatory path before assuming the county page settles the issue. Liberty County’s value here is clarity: do not copy a Montgomery, San Jacinto, or Hardin County permit assumption onto Liberty County land without checking the parcel.

TurnKey Wells helps sort out that planning picture before you start calling drillers. We are not the drilling contractor. We organize the records, explain the likely drilling profile, and connect property owners with vetted licensed drillers for the field work.

Budgeting a Full Residential Well Project in Liberty County

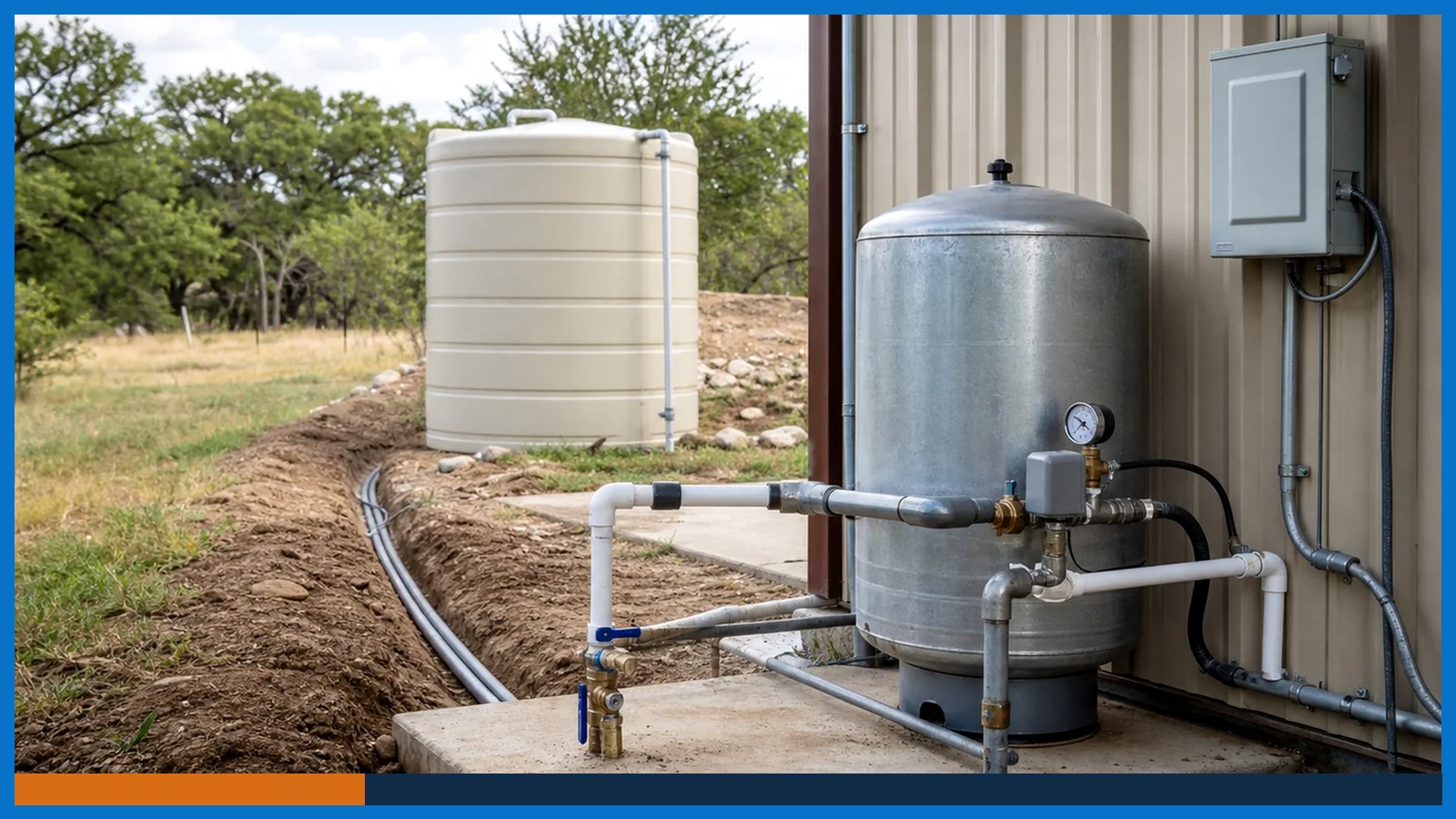

Liberty County’s domestic pump depths are friendlier than a lot of deep North Texas counties, but a full residential well project still needs to be budgeted as a complete system. A practical planning range is generally $25,000 to $45,000+ once drilling, casing, pump equipment, pressure components, trenching, electrical coordination, water testing, and site conditions are counted together.

The 100-foot median pump-depth statistic is useful. It is not a quote. Liberty County projects can still run up when the total drilled depth climbs, the completion interval needs extra casing, the site is wet or difficult to access, the power run is long, or water treatment needs show up after testing. The county page should help you ask better questions, not talk you into a bargain estimate that falls apart once the rig shows up.

• Full residential project planning range: $25,000 to $45,000+ depending on site and completion scope
• Per-foot planning range: $65 to $120 per foot before full-system variables
• Pump and pressure system: commonly $3,000 to $8,000
• Permits and paperwork: commonly $500 to $1,500 depending on the exact jurisdiction and use
• Water treatment: quote after testing, not before

Water Quality and Completion Concerns in Liberty County

Liberty County wells should be tested before household use, even when the drilling side looks routine. Gulf Coast wells can produce iron, manganese, tannin staining, sediment, low-pH water, and fine sand issues depending on the producing interval and how the well was completed. Some owners will only need modest treatment. Others will need a more deliberate filtration and softening plan.

Completion quality matters just as much as the aquifer name. A county with manageable pump depths can still become an expensive maintenance problem if the screen interval is wrong, the casing seal is poor, or the site location ignores drainage and septic setbacks. That is one reason the county median is only the start of the conversation. The construction details decide whether the well is dependable five years from now, not just whether it made water on drill day.

What Buyers and Landowners Should Do Before Drilling

If you are buying land in Liberty County, start with nearby domestic records and plugged-well history. Then look at whether the tract sits closer to the western growth corridor near Dayton and Cleveland, the older Liberty and Hardin side of the county, or a more rural pocket where access and drainage can change the drilling plan. Ask whether an existing homesite, livestock setup, or older structure could hide a legacy well issue.

If you are planning a new well, use the county numbers as a baseline, then narrow the search to comparable wells near the tract. That is where the Pre-Drill Intelligence Report earns its keep. It helps separate domestic comparables from the county’s monitor, rig-supply, public-supply, and environmental noise so you can budget the project with cleaner evidence.

If you only need a quick first pass to see whether registered wells show up around the property, run the Free Well Check. If you are under contract, pricing a drill job, or comparing properties, do not stop at the county average.

Liberty County Service Area

TurnKey Wells supports well-record review, pre-drill planning, and driller matching across Liberty County, including Dayton, Cleveland, Liberty, Hardin, Devers, Daisetta, Raywood, Ames, Hull, Tarkington Prairie, Rye, and nearby rural acreage.
