Water Well Drilling in Borden County, TX

Borden County Well Planning Starts With Intended Demand, Not a Generic County Median

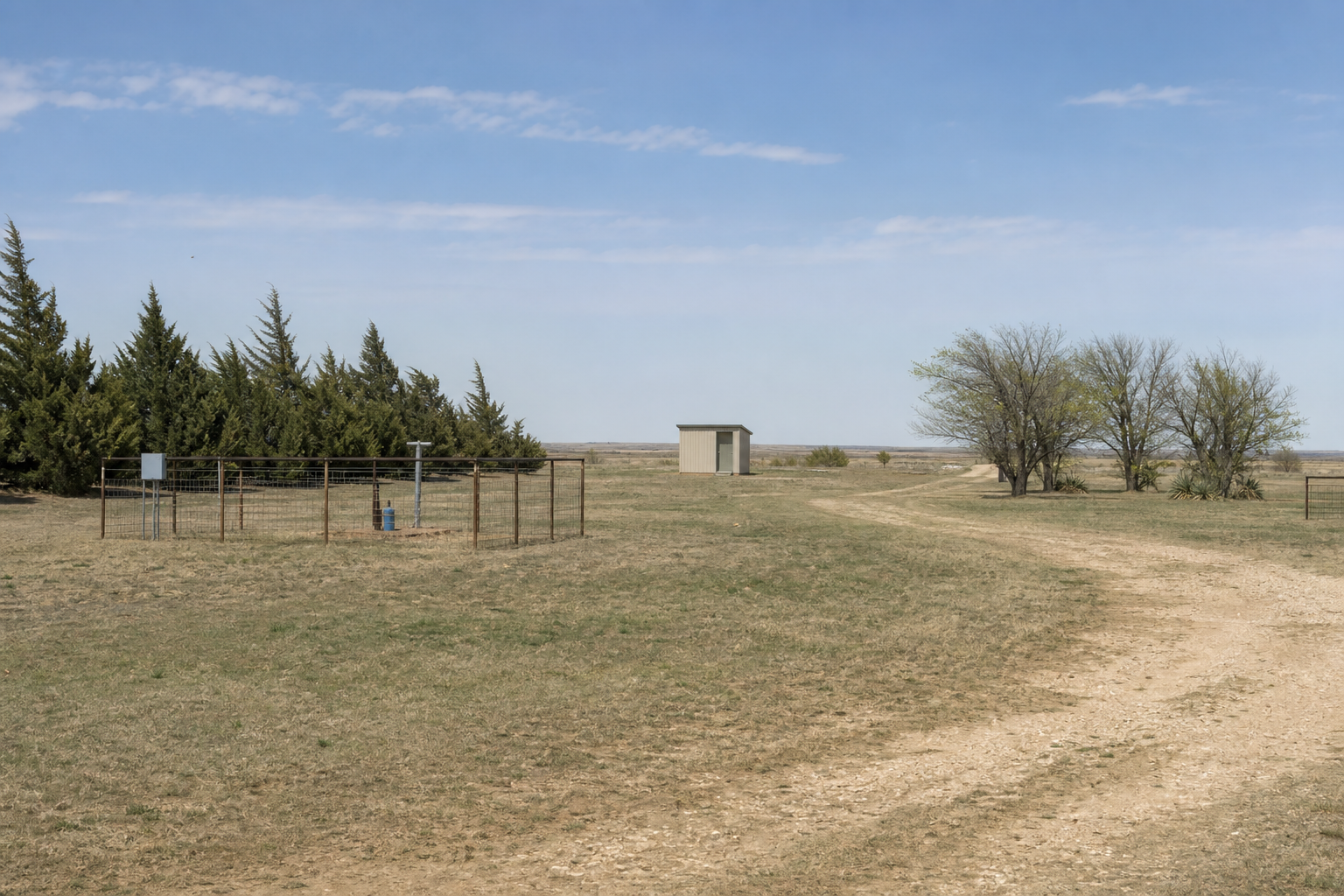

Borden County is sparse Southern High Plains ranch country around Gail, Vealmoor, and scattered homesites where one tract may only need a house well while the next place also feeds stock tanks, a barn, a guest house, or an older farmstead with leftover line runs. That is why this county is not helped by one easy headline number. The TurnKey Wells database shows 429 submitted driller records assigned to Borden County, but the household slice is small enough that the wrong comparable can distort the picture fast.

The mixed-use noise is easy to miss if a buyer only sees “well records near me” and stops there. Borden County includes 144 monitor wells, 79 irrigation wells, 64 stock wells, 48 environmental soil borings, plus thinner but much deeper oilfield-support categories such as 30 rig-supply wells, 15 fracking-supply wells, and 2 industrial wells. A homesite buyer who borrows the wrong slice can underbuild the water system or overprice the tract before a driller ever sees it.

TurnKey Wells does not drill the well. We organize the public record first, separate the household evidence from the non-comparable uses, and help buyers or owners enter the licensed-driller conversation with cleaner assumptions. Start with a Texas water well records lookup when the question is still broad. Move to the Pre-Drill Intelligence Report when the tract is real and you need the county data narrowed to the actual property.

What the Borden County Household Depth File Really Gives You

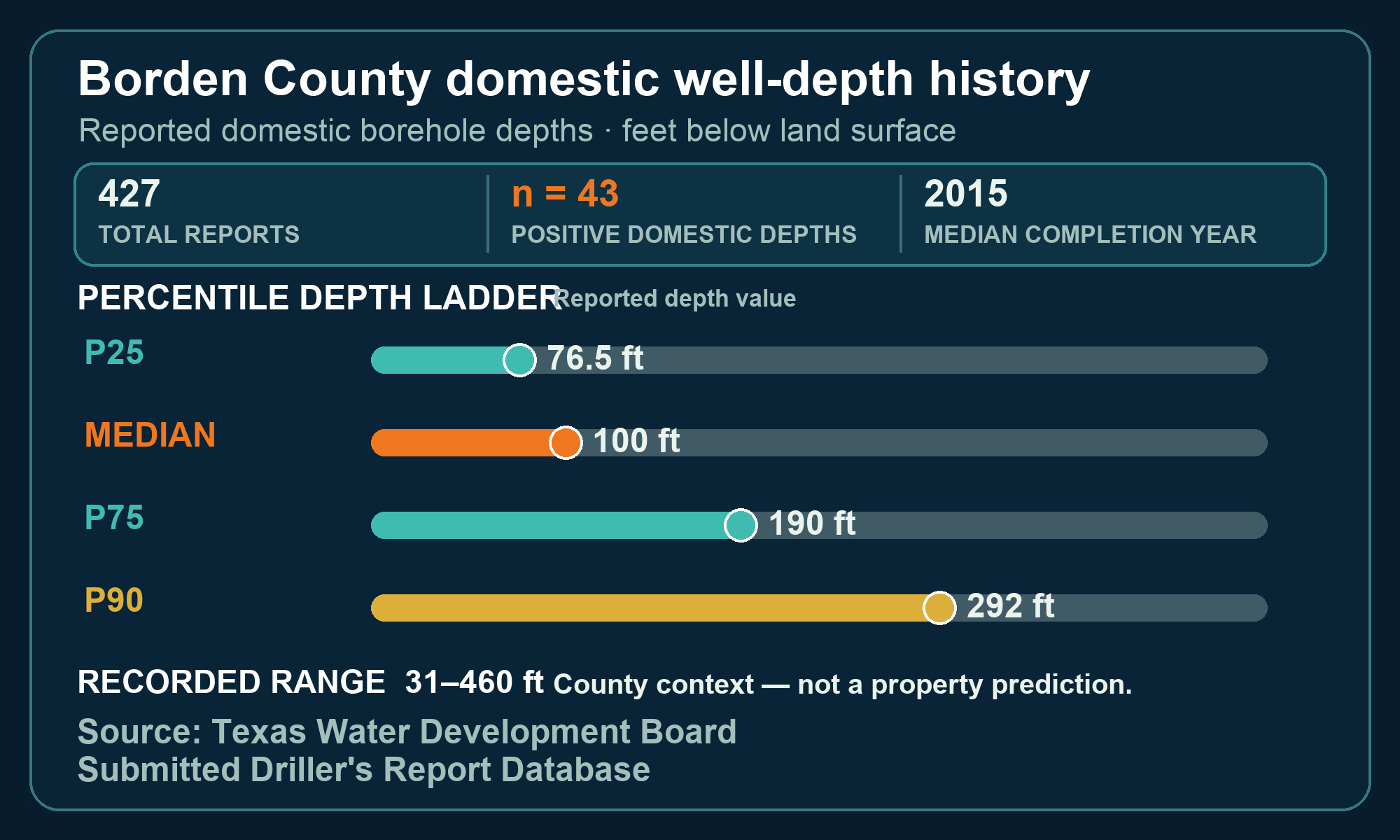

The domestic subset is thin, but it still gives a useful baseline when it is read honestly. Borden County currently shows 43 domestic SDR records, and 43 of those carry usable total-depth values. The median domestic total depth is 100 feet. The practical middle band runs about 77 to 190 feet, and the upper planning marker reaches about 292 feet.

The bigger warning is the equipment side. Only 1 domestic record in the current SDR household subset reports a usable pump depth. That means Borden County gives a workable finished-depth baseline, but not a countywide pump-setting template. A tract buyer should treat the page as direction for the first budget conversation, then confirm pump depth, storage, pressure equipment, and line layout against nearby comparables that actually match the intended household demand.

That difference is important in Borden County because the same parcel can look simple on paper while still carrying a real finished-system question. A house-only setup near Gail is a different job from a place that also needs a stock-water branch, a second pressure zone, or a replacement layout for an older homesite that already has buried plumbing in the ground.

• Total SDR records: 429 submitted driller reports in Borden County
• Domestic records: 43 total
• Usable domestic total-depth logs: 43
• Usable domestic pump-depth logs: 1
• Median domestic total depth: 100 ft
• Domestic middle band: about 77 to 190 ft
• Upper planning marker: about 292 ft
• Plugged-well records: 95 county records in the plugging dataset

Why a Small Borden County File Can Go Sideways Fast

The blended county average depth is about 121.2 feet, while the domestic average is closer to 150.6 feet. That gap is the warning. The broad county number reads shallower than the household subset because monitor wells and borings drag it down, while deeper oilfield-support categories pull other parts of the file up. In Borden County, a single county average can look precise while still being wrong for the actual purchase decision.

The non-household categories show why. Monitor wells average only 32.7 feet and borings average about 21.0 feet. Stock wells average about 160.7 feet, irrigation wells average about 101.1 feet, and domestic wells average 150.6 feet. Then the deeper support lanes arrive: rig-supply wells average 370.7 feet, fracking-supply wells average 424.3 feet, and the industrial category averages about 900.0 feet. Those are real Borden County records, but they answer very different questions than a household well for a ranch house, retirement homesite, or buyer trying to reuse an older place.

The intended use should be named before anybody leans on a comparable. One house with standard indoor demand is one job. One house plus trough service, wash-down use, or a second structure is another. A replacement well for an older homesite can be different again if the parcel already has questionable line routing, abandoned equipment, or a prior well location that affects where the next build can go.

Dockum Leads the Tagging, but Borden Is Not a One-Story Aquifer County

The groundwater database points to a mixed High Plains and red-bed profile. Borden County shows 66 GWDB county wells, led by 37 Dockum-tagged wells, then 18 Ogallala, plus a smaller unassigned and other tail. That is useful because it tells buyers this county is not just a pure shallow Ogallala headline and not a one-zone county where every tract should be expected to read the same.

The GWDB use split reinforces that caution. Borden County shows 12 GWDB domestic wells with a median depth around 68 feet, while the small irrigation sample has a median near 60 feet. The same file also carries 22 industrial GWDB wells averaging about 924.4 feet, 8 unused wells averaging 412.4 feet, and 5 plugged or destroyed wells averaging 707.0 feet. That means the background geology is helpful context, but the tract still has to be filtered by intended use, location, and the age of the nearby wells that appear on screen.

The best internal groundwater background pages for this county are The Ogallala Aquifer in Texas and The Dockum Aquifer in Texas. They explain why Borden County can carry shallow-looking domestic numbers in one slice and much deeper drilling expectations in another, especially once a parcel starts drifting toward older field-service or larger-demand comparables.

Older Wells, District Checks, and Lease-Use History Need Parcel Review

Borden County sits in the broader High Plains and red-bed planning corridor, but buyers should not assume one blanket district answer without checking the parcel. Official High Plains Water District mapping and Texas Water Development Board district resources should be reviewed against the exact tract before anybody relies on a registration, spacing, or permit assumption. The county is too sparse, and the water-planning stakes are too high, for a county-level guess to be treated like proof.

Older-well history is also a real Borden County issue. The county shows 95 plugged-well records in the local file, which is enough to warn buyers away from the easy “it is just raw acreage” story. A tract may carry an old farmstead, a prior house pad, a retired stock well, or a plugged location that still affects where a replacement well, power trench, or water line should go. If the parcel already has an older well, the seller-disclosure work and the field layout belong in the same review.

The best internal permit starting point is the water well permit Texas and groundwater district rules guide. TurnKey Wells helps organize those district, disclosure, and prior-well questions before the quote phase begins. We are not the licensed drilling contractor. We review the public evidence, flag the early risk, and help owners step into the field-work conversation with cleaner assumptions.

Storage, Long Line Runs, and Finished-System Planning Still Drive the Real Budget

The public groundwater file shows 39 county wells flagged with water-quality availability, which is useful context but not a substitute for current testing. New and existing private wells in Borden County should still be tested for total dissolved solids, hardness, sediment, bacteria after drilling, and any tract-specific chemistry tied to completion zone or well age. A shallow-looking county number does not remove the need for treatment planning.

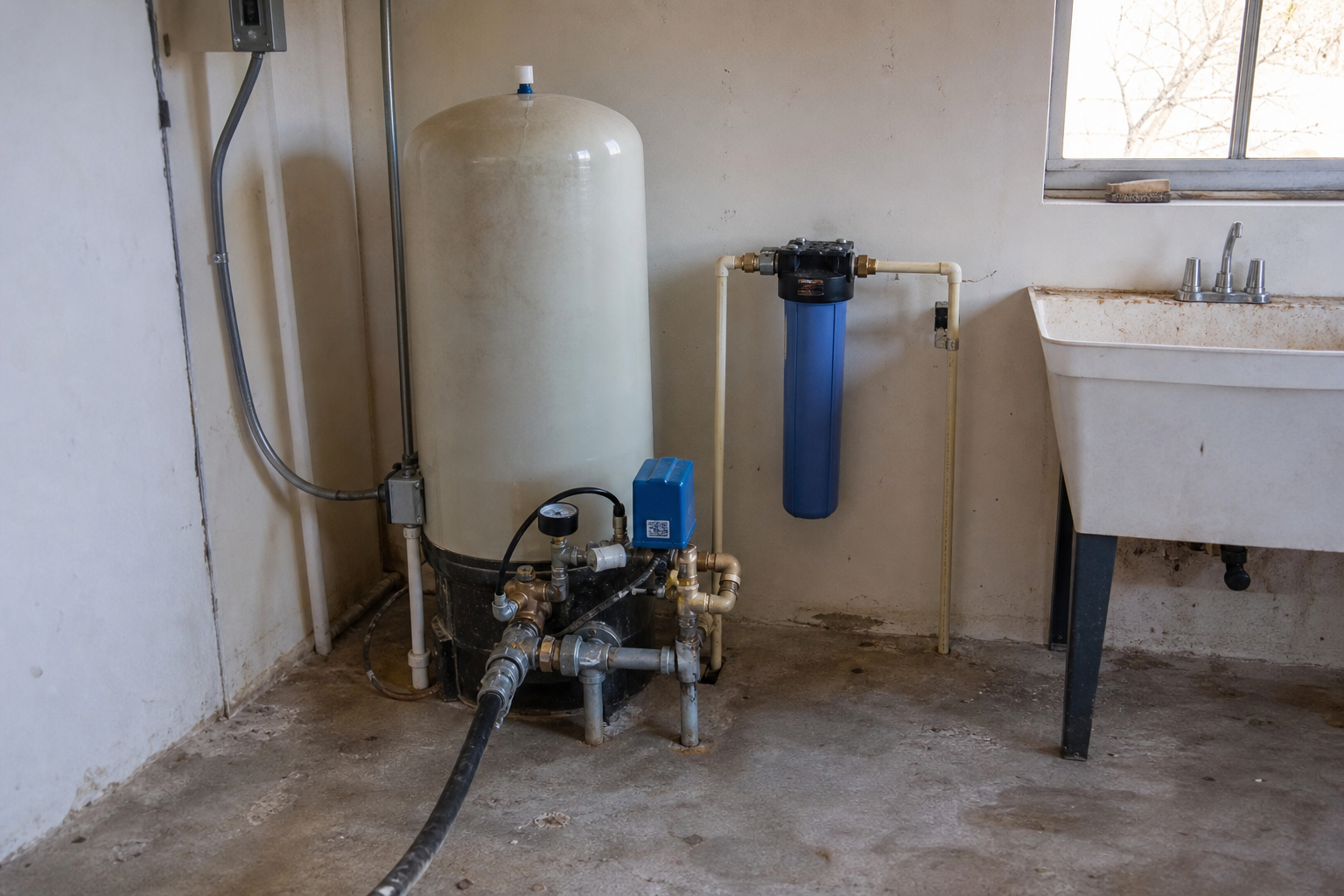

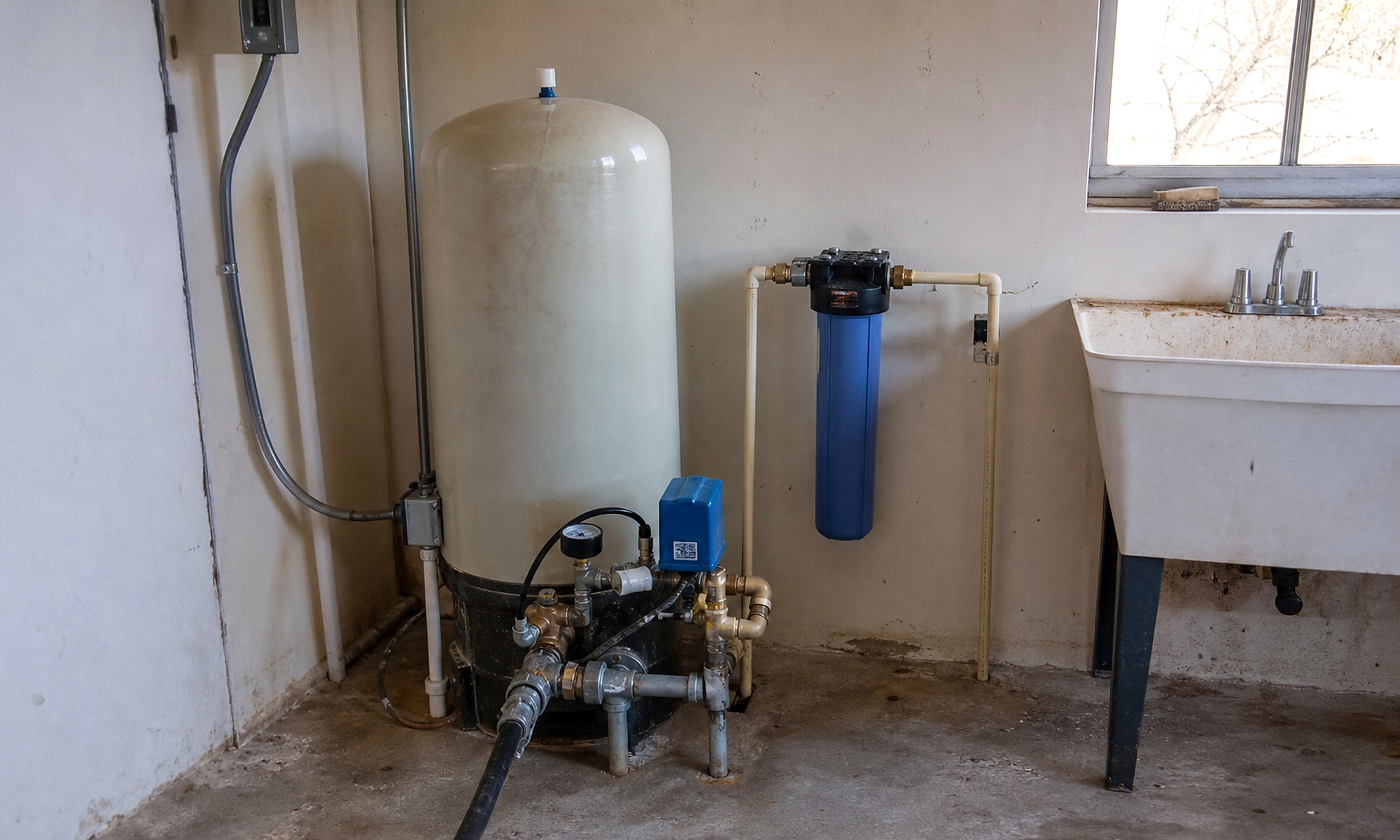

The finish-system side is where Borden County acreage often gets underestimated. Open country can mean long trench runs from the well to the house, separate service to a barn or equipment shed, wind exposure that pushes storage choices, and older line layouts that do not fit the next owner’s use plan. A domestic depth median does not answer whether the tract needs extra storage, a stronger pressure setup, a line reroute, or a second branch for non-house demand.

That is why Borden County projects should be budgeted as full private water systems. The borehole is only one cost layer. Pressure equipment, storage, trenching, electrical coordination, testing, and the exact layout between structures can move the final number faster than a first-time buyer expects.

Budgeting a Full Residential Well Project in Borden County

Borden County’s domestic median around 100 feet is useful planning evidence, but it is not a contractor quote. A realistic well drilling cost Texas planning range for a finished residential project in Borden County is generally $25,000 to $45,000+ once drilling, casing, pump equipment, pressure components, trenching, electrical coordination, testing, storage, and district or disclosure-related paperwork are counted together.

That range can move upward quickly when the tract needs deeper construction than the county median suggests, a replacement system for an older homesite, longer utility runs across ranch acreage, or extra storage for the real demand profile. In Borden County, the honest first question is not just “how deep is the well?” It is “what does this place need the water system to do once the well is finished?” The tract-level review turns that question into a workable budget.

• Full residential project planning range: $25,000 to $45,000+ depending on site and completion scope
• Typical drilling-rate assumption: $65 to $120 per foot before full-system variables
• Pump and pressure system: commonly $3,000 to $8,000 depending on depth and demand
• Permits and paperwork: commonly $500 to $1,500 depending on district and use
• Storage and long-run plumbing: quote from the actual tract layout, not the county median
• Water treatment: quote separately after testing, not before

Who This Page Helps in Borden County

This page is for rural buyers, landowners, and agents who need a grounded Borden County baseline before they buy acreage, inherit an older well, or start pricing a new household system. TurnKey Wells supports that planning work across Borden County, including Gail, Vealmoor, Mesquite, and the surrounding ranch and farm tracts stretched across the county’s long road grid.

If the question is still broad, start with the county numbers and the free record screen. If the tract is active, move to the Pre-Drill Intelligence Report. That is where a small and mixed county file becomes a parcel-level water plan instead of a guess built from the wrong comparable.
