Water Well Drilling in Hill County, TX

Hill County Water Well Planning Starts With the Right Records

Hill County has 807 submitted driller records in the TurnKey Wells database, offering a solid starting point for understanding groundwater in the region. Located south of the DFW metroplex, the county is a mix of agricultural land, growing rural communities, and properties near Lake Whitney. However, before a buyer prices a new well or relies on an existing one, the raw data needs careful filtering by intended use, local geography, and aquifer characteristics.

TurnKey Wells helps property owners, buyers, sellers, and agents in Hillsboro, Whitney, Itasca, and across the county to interpret these records. Our goal is to move beyond simple averages to provide actionable intelligence for land purchases, drilling projects, and water-well disclosures. Use the Free Well Check for a quick overview and the Pre-Drill Intelligence Report for a detailed, property-specific analysis.

What the Hill County Well Data Says

For household use, the most reliable data comes from the domestic well subset. The database includes 428 domestic wells with usable depth data. In this specific set, the median depth is 370 feet, the practical middle band is about 240 to 510 feet, and the upper planning marker for deeper wells is around 645 feet. This indicates that while many wells are in a moderate depth range, planning for deeper targets is essential in certain parts of the county.

The geology of Hill County is influenced by its position along the Balcones Fault zone, creating variability in well depths and water quality. The dominant aquifer signal from local groundwater data is the Trinity Aquifer, a reliable source for much of Central Texas.

• Total SDR records: 807 submitted driller reports in Hill County
• Usable domestic depth logs: 428
• Median domestic depth: 370 ft
• Domestic middle band: about 240-510 ft
• Upper planning marker: about 645 ft
• Main aquifer signal: Trinity

Understanding the Geology and Aquifers in Hill County

Before any drilling begins, understanding the local geology is paramount. Hill County sits firmly in Trinity Aquifer country, a complex system of water-bearing formations including the Paluxy, Glen Rose, and Travis Peak. The Trinity is known for providing reliable, high-quality water, but its depth and productivity can vary significantly across the county.

The Texas Water Development Board (TWDB) database provides decades of well records, which we analyze to understand historical success rates, depths, and yields. This data-driven approach allows us to form a strong baseline for any new project, though it’s no substitute for a site-specific assessment. Geology is rarely uniform, and local variations are the norm.

When evaluating a property in Hill County, we consider:

• Formation Type: The sandy layers of the Trinity formations are excellent for domestic wells, while the limestone and shale layers can be less productive.
• Depth to Water: This is the primary driver of cost. Shallower sections of the aquifer mean lower drilling costs.
• Water Quality: The Trinity generally produces good quality water, but localized issues with hardness or minerals can occur.
• Neighbor Well Data: The performance of nearby wells is the best indicator of what to expect on your property.

Drilling a well in Texas is a science, not a guess. It requires a driller with experience in the specific geology of Hill County to ensure a successful and long-lasting water source.

The Water Well Drilling Process in Hill County

For many landowners, the well drilling process is unfamiliar. Here’s a typical step-by-step overview, from the initial consultation to having water flow to your home.

Step 1: Site Assessment

We begin with a thorough review of your property and neighboring well data. A site visit helps us identify the optimal drilling location, ensuring it is a safe distance from septic systems and other potential contaminants, in accordance with Texas state regulations.

Step 2: Permitting

A drilling permit is required from the local groundwater conservation district (GCD). For Hill County, this is typically the Prairielands Groundwater Conservation District. We handle the entire permitting process, which generally costs between $500 to $1,500.

Step 3: Drilling

Our team mobilizes a drilling rig to your property. A residential well in Hill County usually takes one to three days to drill, depending on the depth and geological conditions. We log the formations encountered to ensure we are targeting the most productive water-bearing zones.

Step 4: Casing and Grouting

A steel casing is installed and grouted to protect the well from surface contamination and ensure its structural integrity. This is a critical step that guarantees the safety and longevity of your water supply.

Step 5: Pump Installation

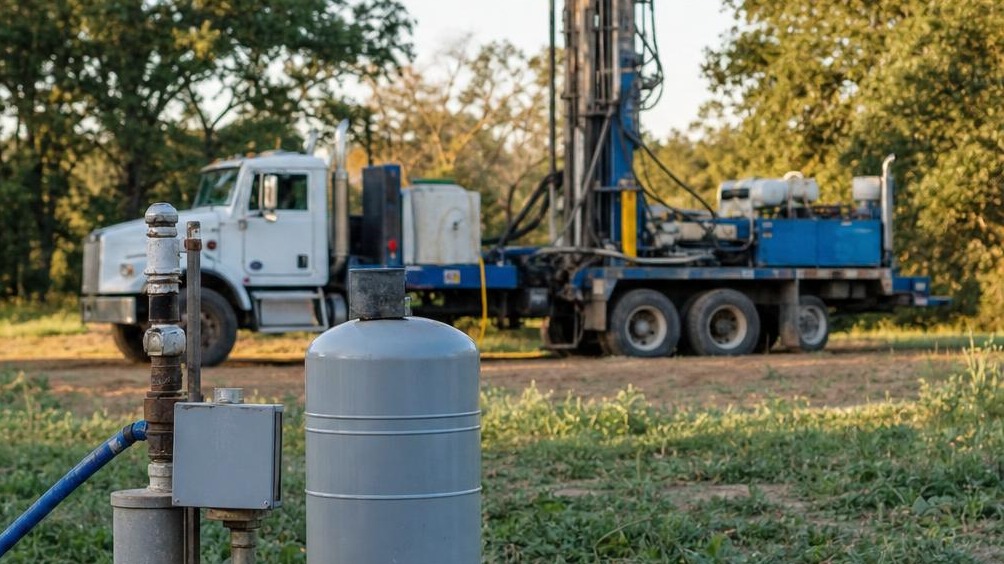

Once the well is complete, we install a submersible pump and pressure system tailored to your well’s yield and your household’s water needs. A correctly sized system provides consistent water pressure and extends the life of the equipment.

Step 6: Water Testing

We recommend a comprehensive water quality test after drilling. While not required by the state for private wells, it provides peace of mind and allows for the selection of an appropriate water treatment system if needed.

Budgeting a Full Well Project in Hill County

A complete residential well system in Hill County involves more than just drilling. A practical planning range is generally $25,000 to $45,000+, encompassing drilling, casing, the pump system, trenching, electrical work, and permitting.

• Per-foot rate: $65 to $120/ft
• Pump & pressure system: $3,000 to $8,000
• Permits: $500 to $1,500
• Water treatment: Quoted separately after water quality testing.

Water Well Permitting in Hill County, Texas

Groundwater in Texas is managed by local Groundwater Conservation Districts (GCDs). The rules in Hill County may differ from neighboring counties, so it’s important to understand the local requirements.

Who Issues the Permit?

The Prairielands Groundwater Conservation District is typically the permitting authority for Hill County. We verify the correct jurisdiction for your specific property to ensure compliance.

What the Permit Covers

A standard permit covers a new residential well. Agricultural or irrigation wells may require different permits. The permit also specifies setback distances from property lines and septic systems.

Texas Licensed Driller Requirement

All wells in Texas must be drilled by a driller licensed with the Texas Department of Licensing and Regulation (TDLR). TurnKey Wells is not a drilling contractor; we connect you with vetted, licensed professionals for the job.

Reporting and Records

After completion, the driller submits a Well Report to the TWDB. This becomes a permanent record for your property, which is valuable for future maintenance, servicing, and property transactions.

Common Water Quality Issues in Hill County Wells

Well owners are responsible for their own water quality. In Hill County, the Trinity Aquifer generally provides good water, but some issues can arise.

Hardness

Hard water is common in Central Texas. It’s not a health risk but can damage appliances. A water softener is a common solution for many homeowners in the area.

Iron and Manganese

These minerals can cause staining and a metallic taste. They are naturally occurring and can be treated with filtration systems.

Total Dissolved Solids (TDS)

High TDS can affect the taste of your water. The levels can vary depending on the specific zone of the aquifer your well draws from.

Bacteria

A new well should always be disinfected and tested for bacteria. This is a standard procedure to ensure the water is safe for consumption.

Nitrates

In agricultural areas, nitrates from fertilizers can be a concern. A water test can determine if your water is affected.

Hill County Service Areas

TurnKey Wells supports well-record review, pre-drill planning, and driller matching across Hill County, including Hillsboro, Itasca, Blum, Grandview, Covington, Whitney, and surrounding rural areas.

Water Well Cost Planning in Hill County

County well pages are useful starting points, but the real budget depends on nearby well depth, casing, pump size, utility distance, and local groundwater rules. Use this page with the Texas water well drilling cost guide to compare Hill County conditions against broader statewide planning ranges.
