Water Well Drilling in McLennan County, Texas

McLennan County is the population center of Central Texas, anchored by Waco and surrounded by growing bedroom communities and rural acreage. While the city of Waco runs on municipal water, tens of thousands of properties in Hewitt, Woodway, McGregor, China Spring, Lorena, and the unincorporated county depend on private water wells. TurnKey Wells provides professional water well drilling and pump services throughout McLennan County.

The Trinity Group aquifer dominates this part of Texas, producing reliable yields when drilled to depth. Our TWDB records show over 1,750 permitted wells in McLennan County, with domestic well depths averaging around 611 feet. Depths vary significantly depending on where you are in the county, which is why local experience matters before you commit to a drill site.

Before purchasing rural land in McLennan County, we strongly recommend a pre-drill report to review nearby well records and understand what depth and cost to expect on your specific parcel. If you already have a well on the property, a free well check helps you confirm it is producing properly and up to current standards.

McLennan County Well Depth and Geology

With 1,750+ permitted wells on record, McLennan County has a solid drilling history across Central Texas. Domestic wells average around 611 feet, though depths range widely from shallow alluvial wells near the Brazos and Bosque river bottoms to deep Trinity wells on the upland prairie west of Waco.

• Average domestic depth: 611 ft
• Depth range: 24-1,100 ft
• Primary aquifer: Trinity Group (Paluxy and Glen Rose formations)
• Most common use: Domestic, irrigation, stock, and environmental monitoring

Understanding the Geology and Aquifers in McLennan County

McLennan County sits over the Trinity Group aquifer system, which includes the Paluxy and Glen Rose formations. These formations consist of interbedded sandstones, limestones, and shales that were deposited during the Early Cretaceous period. The Paluxy sand in particular tends to produce the best domestic yields in this part of Texas, but reaching it consistently requires drilling to 500 feet or more on upland properties. Properties near the Brazos River valley sometimes find shallower water in alluvial gravels, but those wells can be more vulnerable to surface contamination and seasonal fluctuation.

The eastern edge of McLennan County begins to transition into the Woodbine formation, which produces water at different depths and with different quality characteristics than the Trinity sands. This east-west geological split means that two properties just ten miles apart can have very different drilling profiles. That is not unusual in Texas, but it underscores why reviewing neighbor well records before committing to a site is worth the time.

• Formation type: Trinity Group sandstone and limestone, alluvial gravels near river corridors
• Depth to water: Shallower near the Brazos and Bosque river valleys; significantly deeper on the Blackland Prairie uplands
• Water quality at depth: Generally hard with elevated minerals; iron can be elevated in some zones and benefits from filtration before household use
• Neighbor well data: TWDB records for McLennan County are a useful baseline; we review them on every job

The Water Well Drilling Process in McLennan County

Most property owners have never had a well drilled before. Here is how the process works from first call to water flowing in your home.

Step 1: Site Assessment

We review your property location, pull nearby TWDB well records, and assess the likely formation depth before we quote the job. We pick a drill site that maximizes your chances of hitting a productive zone while meeting all required setback distances from septic systems, property lines, and other contamination sources.

Step 2: Permitting

Water well drilling in McLennan County requires a permit through the local Groundwater Conservation District before work begins. We pull the permit on your behalf. Permit fees typically run $500-$1,500. If your property is subject to TREC disclosure requirements, review the TREC Form 61-0 water disclosure guidelines so you understand your obligations as a buyer or seller.

Step 3: Drilling

We mobilize our rig and begin drilling. Residential wells in McLennan County at typical depths can take two to four days. We log the geology as we drill and test flow rates before setting casing.

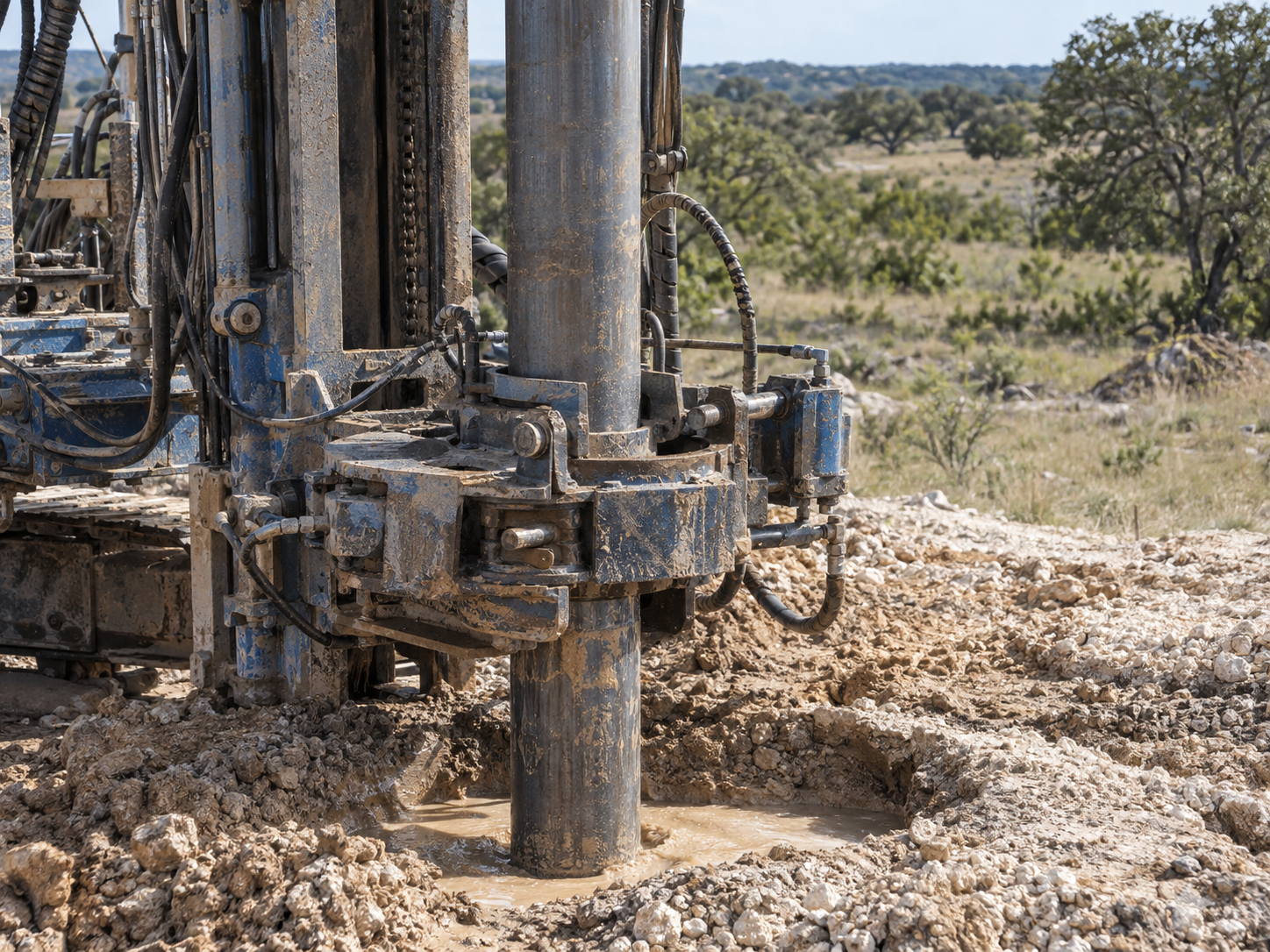

Step 4: Casing and Grouting

Steel casing is set and grouted to protect the well from surface contamination. We use schedule 40+ steel casing and follow all TCEQ annular grouting requirements.

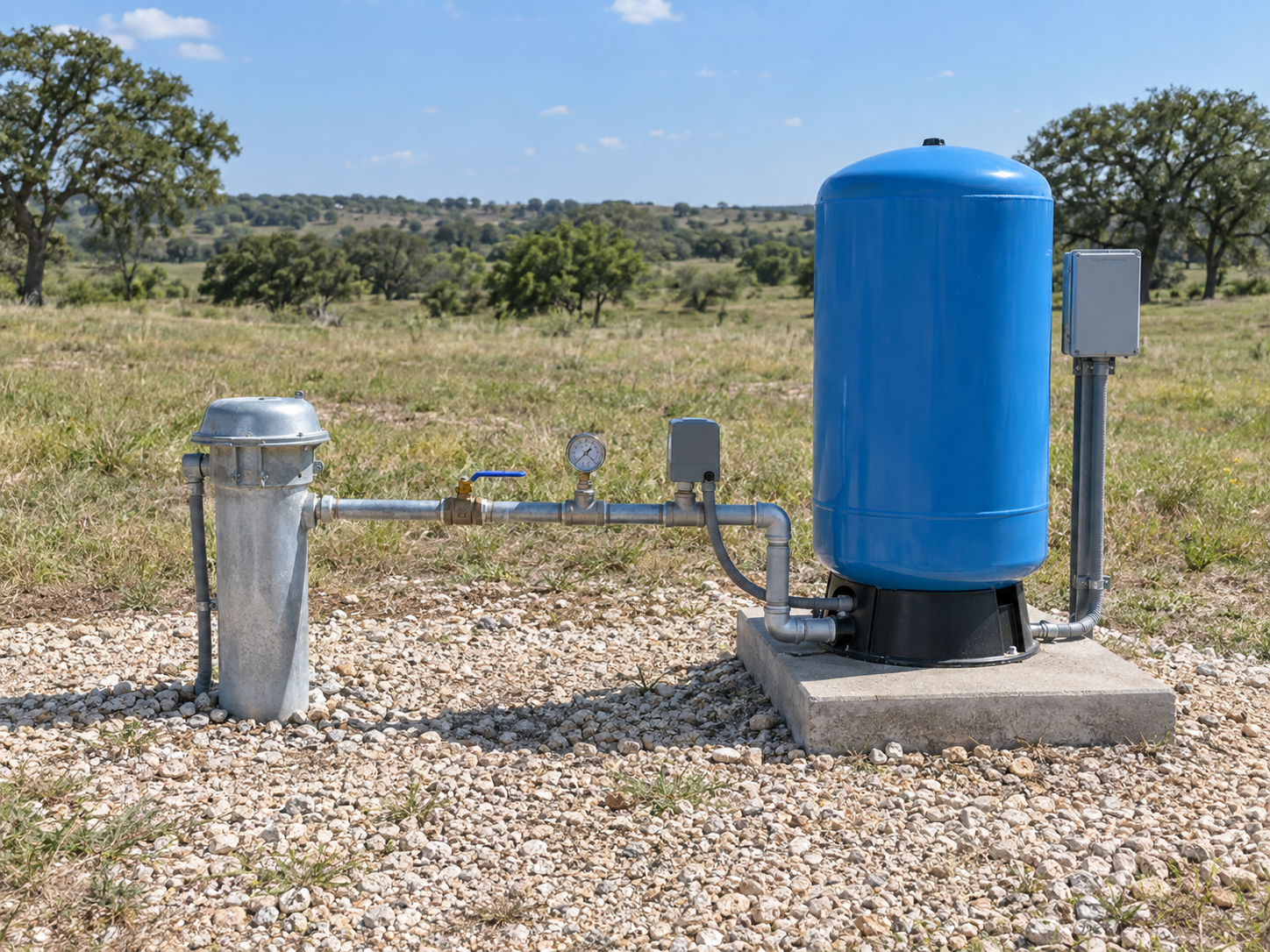

Step 5: Pump Installation

We install the submersible pump, pressure tank, and control panel sized to your specific yield and household demand. Properly sized pump systems last 15-25 years with routine maintenance.

Step 6: Water Testing

We recommend a baseline water test after drilling. Knowing your baseline mineral content, hardness, and bacteria levels lets you select the right treatment system from the start.

What Does a Well Cost in McLennan County?

Residential drilling in McLennan County typically runs $25,000-$45,000+ depending on depth and formation. Given the county’s wide depth range, site conditions drive cost more than any regional average.

• Per-foot rate: $65-$120/ft
• Pump and pressure system: $3,000-$8,000
• Permits: $500-$1,500

Properties on the upland prairie west of Waco where Trinity depths run deeper will land toward the higher end of that range. Properties near the river corridors with shallower alluvial water may come in lower, though those sites require careful evaluation for contamination risk.

Water Well Permitting in McLennan County, Texas

Texas groundwater is managed through local Groundwater Conservation Districts. McLennan County falls under the Upper Trinity Groundwater Conservation District, which sets the rules for permitting, spacing, and reporting requirements in this area. Here is what you need to know.

Who Issues the Permit?

The Upper Trinity GCD issues drilling permits for McLennan County properties. The district tracks well spacing, setback requirements, and reporting. We file the permit on your behalf and manage the process from application through final reporting.

Texas Licensed Driller Requirement

Texas law requires all water wells to be drilled by a licensed driller registered with the Texas Department of Licensing and Regulation (TDLR). TurnKey Wells is fully licensed and insured. Always verify your driller’s license before signing a contract.

Reporting and Records

After drilling, your driller submits a Well Report to the TWDB within 30 days. This becomes a permanent public record for your property, useful for future owners and real estate transactions. If you are buying land with an existing well, check the TWDB database first or request a well check to confirm the well’s condition and history.

TREC Form 61-0 and Water Disclosure

Texas real estate transactions involving properties with water wells require specific disclosures. Learn how the TREC Form 61-0 water well disclosure works and what sellers are required to provide to buyers in McLennan County.

Common Water Quality Issues in McLennan County Wells

Private well owners in Texas are responsible for the quality of their own water. Wells in McLennan County commonly produce hard water with elevated calcium and magnesium from the limestone formations. Iron levels can be elevated in certain Trinity zones and benefit from filtration before household use. A baseline water test after drilling is the best way to understand your specific water profile.

Hardness

Hard water is very common in Central Texas. It is not a health concern but causes scale buildup in water heaters and appliances. Most McLennan County customers end up with a water softener, and we can help size one to match your hardness level and household use.

Iron and Manganese

Iron and manganese occur naturally in the Trinity Group formations. At elevated levels they stain laundry and plumbing fixtures. Both are treatable with iron filters or oxidizing systems based on your water test results.

Total Dissolved Solids (TDS)

TDS varies across McLennan County depending on the specific zone you are producing from. Higher TDS affects taste and can accelerate scaling. A water test will tell you where your levels fall.

Bacteria

All new wells should be disinfected and tested for coliform bacteria before use. This is standard practice. We disinfect every well we drill and recommend a certified lab test before the system goes into service.

Nitrates

Agricultural land is common in rural McLennan County. If your property neighbors active farmland or has a history of farming, a nitrate test is worth doing upfront, particularly if the household includes infants or pregnant women.

McLennan County Service Areas

We serve all of McLennan County: Waco, Hewitt, Woodway, McGregor, China Spring, Lorena, Bellmead, Hillsboro, Crawford, West, and surrounding rural areas and unincorporated tracts.
